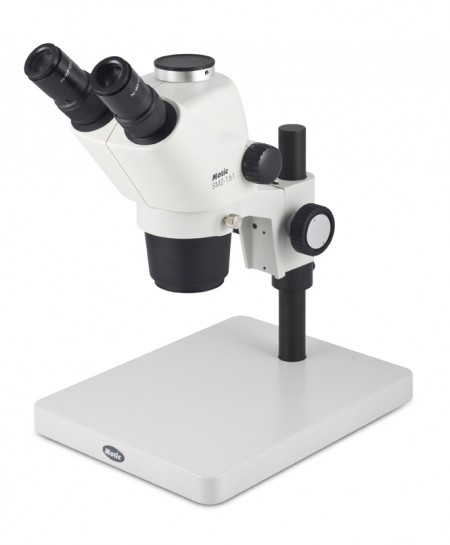

Motic Microscopes SMZ161 inspection Stereo Zoom microscope

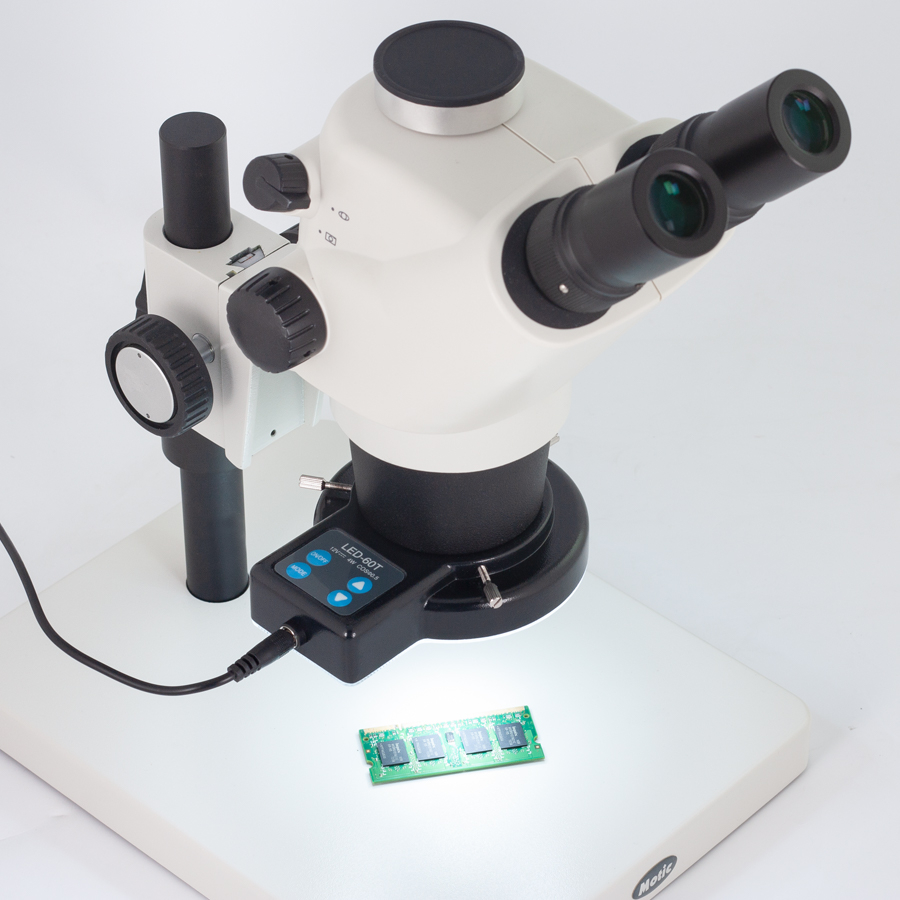

Budget Trino zoom microscope SMZ-161-TP with greenough optical zoom system delivering clear distortion-free image with a zoom range ratio of 6:1. Zoom click-stop mechanism enables precise position of magnification for calibration & measurement. Featuring a long 110mm working distance in its standard 1x objective configuration. A zoom microscope for general inspection QA/QC applications within materials / electronics inspection. Also as a Hobby microscopy, entomology & higher education.
Require assistance or wish to request a microscope quotation – Contact MMS Microscopes Here
Motic Stereo Zoom Microscope SMZ161 TP Trinocular Stereo zoom Microscope Comprises:-
- Microscope – Greenough zoom optical system
- Trinocular head, 45° inclined, 360° rotating
- 100:0 (eyetubes), 0:100 (right eyetube/trinocular tube) optical split
- Widefield eyepieces WF10X/20mm
- 6:1 Zoom ratio, WD=110mm
- Objective magnification range: 0.75X-4.5X
- Plain stand
- Head holder without light
- Coarse focusing system with tension adjustment
- Black/White stage plate and dust cover
- Motic SMZ-161-TP Model ref: 1100201300032
- Motic SMZ 161 BP Binocular version Model Ref: 1100201300022
Motic SMZ 161 Series Component Options Include:-

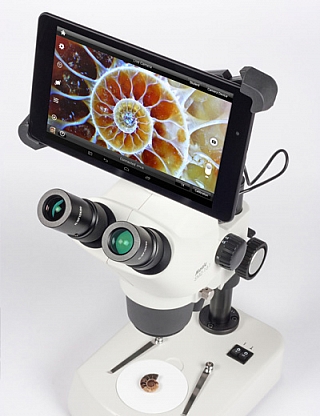

- WiFi camera to view & capture images onto a tablet / iPad
- HD Monitor viewing camera with SD card for 8.0 Megapixel image capture
- LED Ring illuminator ( Segmented & Fixed Options)
- Vertical spot illuminator ( surface illumination & through hole )
- DSLR Photo Adaption Kit
- C Mounts to adapt Moticam Microscope Camera / C Mount Camera
- 10x WF 15x WF & 20x WF Eyepieces
- 0.3x 0.5x 0.63x 0.75x 1.5x & 2.0x Auxiliary Objectives
- Eyepiece Reticule
- Glide Stage
- Mechanical stage
- Darkfield Attachment
- Polarising Equipment (1 Piece Rotary)
- LED stereo microscope Ringlight illumination
