Motic Microscopes Panthera C2 Koehler Laboratory Microscope with coded nosepiece
£1,345.00 – £1,690.00
Motic Microscopes Panthera C2 Koehler Laboratory Microscope
- Biosciences / Laboratory Microscope / Koehler illumination
- Trinocular head Siedentopf type, 25° inclined, 360° rotation
- Widefield high eyepoint eyepiece UC-WF10X/22mm
- Reversed coded quintuple nosepiece

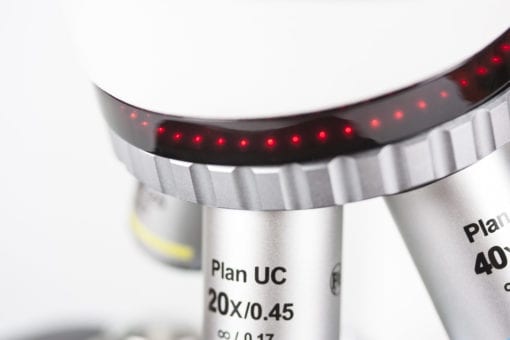

- Motic Light Tracer (Intelligent Light Management)LED strip light indicator
- CCIS® Plan UC objectives 4X, 10X, 40X S, 100X S-Oil
- Customise Objective combinations & Accessories with Quote Request
- Coaxial coarse and fine focusing adjustment with tension adjustment
- Built-in low position coaxial rackless mechanical stage (Right-hand control)
- Focusable Abbe condenser N.A. 0.90 with iris diaphragm and slot
- Koehler LED illumination 3W & Halogen 30watt with intensity control
- USB port for camera power supply
- MMS Supply direct to UK & EU Customers
- Save 10% off any microscope camera purchased with your C2
- Contact MMS Microscopes for the very best digital microscope package deals
Motic Microscopes Panthera C2 Laboratory Compound Microscope
Motic Panthera C2 full koehler light microscope with the latest compact design & features to improve work flow. Motic light tracer with intelligent light management, preset illumination intensity level on each objective. A rackless stage with twin slide holder & ultra contrast optical imaging performance.
Summary of Motic Panthera C2 Features:-
- Reversed coded quintuple nosepiece
- Intelligent light management
- Ultra contrast optics (UC)
- Smooth rackless stage with dual slide holder
- Full Koehler illumination
- 3W LED & interchangeable 30 Watt Halogen
Motic Panthera C2 standard specification:
- Binocular or Trinocular head Siedentopf type, 25° inclined, 360° swiveling / Trinocular Option
- Widefield high eyepoint eyepiece UC-WF10X/22mm with diopter adjustment on both eyepieces and rubber eyecups
- Reversed coded quintuple nosepiece with Motic Light Tracer (Intelligent Light Management)
- LED strip light indicator
- CCIS® Plan UC (Ultra Contrast) objectives 4X, 10X, 40X S, 100X S-Oil
- Coaxial coarse and fine focusing adjustment with tension adjustment
- Built in low position coaxial rackless stage with right hand control
- Dual Slide holder with one handed operation
- Focusable Abbe condenser N.A. 0.90 with iris diaphragm and slot
- Koehler 30 watt Halogen & LED illumination 3W with intensity control (C2)
- Integrated USB port for camera power supply
- Power supply 100-240V (CE) with Sleep Mode
- UK or EU Power cord, immersion oil (5ml), allen hexagonal key, vinyl dust cover
- Motic Panthera C2 Binocular with 4x, 10x, 40x & 100x (Oil) UC Objectives Part No: 1100104601131
- Motic Panthera C2 Trinocular with 4x, 10x, 40x & 100x (Oil) UC Objectives Part No 1100104601141
Request a quotation from UK Importer of Motic Microscopes MMS Microscopes Here
Recent MMS Microscopes / Motic Panthera installations include -
- Cosmetics microscopy research
- Medical devices contamination inspection
- Microbiological water analysis
- Laboratory research
- Veterinary referrals microscopy lab screening
- Advanced student & hobby microscopy
- Algae research
Motic Panthera Series Accessories :-
CCIS® Plan UC (Ultra Contrast) Achromat objectives (Pb free) - Plan UC
- CCIS® Plan UC 2X/0.05 (WD=7.2mm)
- CCIS® Plan UC 4X/0.1 (WD=30.5mm)
- CCIS® Plan UC 10X/0.25 (WD=17.4mm)
- CCIS® Plan UC 20X/0.45 (WD=0.8mm)
- CCIS® Plan UC 40X/0.65/S (WD=0.6mm)
- CCIS® Plan UC 60X/0.8/S (WD=0.35mm)
- CCIS® Plan UC 100X/1.25/S-Oil (WD=0.16mm)
- CCIS® Plan UC 100X/0.8/S-Dry (WD=1.7mm)
-
CCIS® Plan UC Phase objectives
- CCIS® Plan UC Ph 10X/0.25 (WD=17.4mm), Ph1
- CCIS® Plan UC Ph 20X/0.45 (WD=0.8mm), Ph2
- CCIS® Plan UC Ph 40X/0.65/S (WD=0.6mm), Ph2
- CCIS® Plan UC Ph 100X/1.25/S-Oil (WD=0.16mm), Ph3
-
CCIS® Plan UC NCG objectives
- CCIS® Plan UC NCG 10X/0.25 (WD=17.4mm)
- CCIS® Plan UC NCG 20X/0.45 (WD=0.8mm)
- CCIS® Plan UC NCG 40X/0.65/S (WD=0.6mm)
- CCIS® Plan UC NCG 100X/1.25/S-Oil (WD=0.16mm)
Condensers
- Achromatic swing-out condenser N.A. 0.90/0.13 with iris diaphragm
- Abbe condenser N.A. 0.90 with iris diaphragm and slot for sliders
- Phase contrast 5 position (BF, DF, Ph1, Ph2, Ph3) turret condenser
Phase contrast and darkfield accessories
- 3-Position Phase slider for Ph1, Ph2, BF Phase slider Ph1 (10X)
- Phase slider Ph2 (20X, 40X)
- Phase slider Ph3 (100X)
- Darkfield slider (4X~40X) Phase centering telescope
- Simple add on analyzer Simple add on polarizer
Photo and C-mount camera adapters
- 0.35X C-mount camera adapter for 1/3" chip sensors
- 0.5X C-mount camera adapter for 1/3" and 1/2" chip sensors
- 0.65X C-mount camera adapter for 2/3" chip sensors
- 1X C-mount camera adapter (no lens)
- Photo adapter DSLR (requires the photo eyepiece below + T2 Mount)
- 2.5X photo eyepiece (to be used with Photo adapter)
- 4X photo eyepiece (to be used with Photo adapter
Microscope camera options from MMS Microscopes
- HD Microscope camera with SD card image capture ( Optional 11" HD screen )
- DSLR Microscope camera mounting kits
- Microscope tablet choice + Wifi camera Moticam X5
- USB3 Microscope camera with microscopy measurement software
- 4K High Resolution HDR Microscope Camera
- Moticam 4000 4K Microscope Camera
Motic Panthera Fluorescence Lab Microscope Options Include:-
CCIS® Plan FLUOR objectives - UC PL FL
- CCIS® Plan FLUOR objective UC PL FL 4X/0.13 (WD=17.3mm)
- CCIS® Plan FLUOR objective UC PL FL 10X/0.30 (WD=11.7mm)
- CCIS® Plan FLUOR objective UC PL FL 20X/0.50 (WD=2.2mm)
- CCIS® Plan FLUOR objective UC PL FL 40X/0.75/S (WD=0.7mm)
- CCIS® Plan FLUOR objective UC PL FL 50X/1.0/S-Oil (WD=0.17mm)
- CCIS® Plan FLUOR objective UC PL FL 100X/1.30/S-Oil (WD=0.1mm)
FLED Fluorescence attachment options
- FLED Fluorescence intermediate attachment (Auramine O) Fluorescence intermediate part
LED excitation module AO, consist of 455nm LED lamp and AO filter cube
Light blocking slider
Note: Recomend to use with Plan objectives UC PL NCG - FLED Fluorescence intermediate attachment (FITC)
Fluorescence intermediate part
LED excitation module FITC, consist of 470nm LED lamp and FITC filter cube
Light blocking slider - FLED Fluorescence intermediate attachment (TRITC)
Fluorescence intermediate part
LED excitation module TRITC, consist of 525nm LED lamp and TRITC filter cube
Light blocking slider
LED Fluorescence filter sets
- LED excitation module AO, consist of 455nm LED lamp and AO filter cube
- LED excitation module FITC, consist of 470nm LED lamp and FITC filter cube
- LED excitation module TRITC, consist of 525nm LED lamp and TRITC filter cube
Eyepiece Graticules for Motic Panthera range:-
- Reticle with crosshair (Ø25mm)
- Reticle with 100 divisions in 10mm (Ø25mm)
- Reticle with crossed double scale 100 divisions in 10mm (Ø25mm) Reticle with pointer (Ø25mm)
Miscellaneous items :-
- Cleaning kit
- Lens tissue paper (Pack 500)
- Motic slides 76x25mm (50 units)
- Motic coverslips 22x22mm (100 units
- Immersion oil 5ml
Choosing the correct microscope for your Lab microscopy application - Which Motic Panthera?
Additional information
| Panthera C2 Bino / Trino | Motic Panthera C2 Bino 4x,10x,40x UC Objectives, Motic Panthera C2 Trino4x,10x,40x UC Objectives, Motic Panthera C2 4x,10x,40x & 100x (oil) UC Objectives |
|---|
