Description

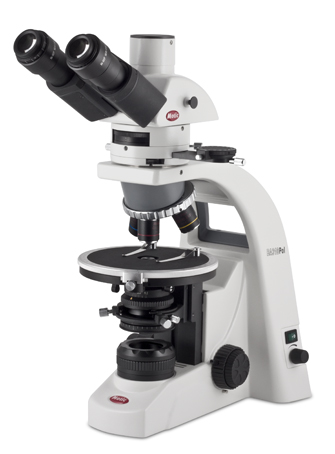

Motic Microscopes BA310 POL Microscope
Polarising Microscope Motic BA310POL for Earth sciences, Petrology & mineralogy microscopy. Additionally synthetic materials in industrial applications demanding repeatable results. A POL scope that is perfect for Earth sciences Education. Offering both optical & mechanical performance with a budget friendly price.
Main features
  • Lead-free manufacturing in full compliance with RoHS regulations
  • New EC Plan Achromatic lenses
  • Transmited light illumination, 6V/30W Halogen
  • Adjustable field diaphragm and aperture diaphragm for an homogenous illumination
  • Multi-layer lens coatings
  • 160mm diameter pre-centered rotating stage with hard coated and chemical resistant surface
 Motic Microscopes Polarising Microscope BA310 POL Comprises:-
  • Trinocular head Siedentopf type, 30° inclined (Light split 100:0/0:100)
  • Widefield high eyepoint eyepieces N-WF PL10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
  • One eyepiece with crosshair reticle and positioning pivot
  • Intermediate tube with rotatable analyser 360° and Bertrand lens
  • Empty insertion plate
  • Reversed quadruple revolving nosepiece, single positions centrable
  • CCIS Plan achromatic Strain-free objectives EC PL P 4X, 10X, 40X S, 60X S
  • Coaxial coarse and fine focusing system with tension adjustment 360o circular rotating stage
  • Achromat swing-out condenser N.A. 0.90/0.13 (strain-free) with iris diaphragm
  • Rotatable polarizer, fixed on condenser carrier
  • Koehler illumination quartz halogen 6V/30W with intensity control Power supply 100V-240V (CE)
  • 45mm blue filter, power cord, Allen hexagonal key, vinyl dust cover
  • Contact MMS Microscopes Here for Motic BA310 POL microscope quotation & delivery information
Motic Microscopes BA310 POL Component Options Include :-

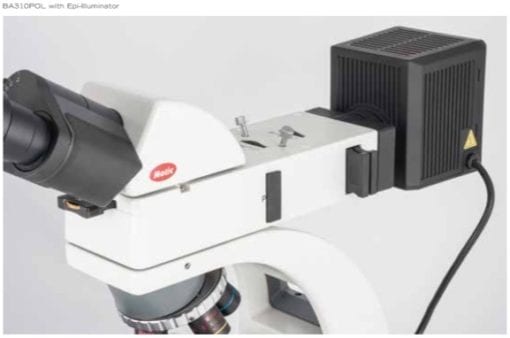

  • Epi-illuminator 12V/50W quartz halogen with integrated field and aperture diaphragms and external lamp house
  • Polariser / Analyser for Incident Light Module (Above)
  • Reticle with crosshair (Ø25mm)
  • Reticle with 100 divisions in 10mm (Ø25mm)
  • Reticle with crossed double scale 100 divisions in 10mm (Ø25mm)
CCIS® Plan achromatic Strain-free objectives – EC PL P
  • CCIS® Plan achromatic Strain-free objective EC PL P 4X/0.10 (WD=15.9mm)
  • CCIS® Plan achromatic Strain-free objective EC PL P 10X/0.25 (WD=17.4mm)
  • CCIS® Plan achromatic Strain-free objective EC PL P 20X/0.40 (WD=0.9mm)
  • CCIS® Plan achromatic Strain-free objective EC PL P 40X/0.65/S (WD=0.5mm)
  • CCIS® Plan achromatic Strain-free objective EC PL P 60X/0.80/S (WD=0.35mm)
  • CCIS® LM Plan achromatic objective LM PL 5X/0.13 (WD=20.3mm)
  • CCIS® LM Plan achromatic objective LM PL 10X/0.25 (WD=17.5mm)
  • CCIS® LM Plan achromatic objective LM PL 20X/0.4 (WD=8.1mm)
  • CCIS® LM Plan achromatic objective LM PL 50X/0.55 (WD=8.4mm)
  • Achromat swing-out condenser,
  • N.A. 0.90/0.13 (strain-free)
  • Mechanical stage
  • Lambda tint plate
  • 1/4 Lambda retardation plate Quartz wedge
  • Empty insertion plate

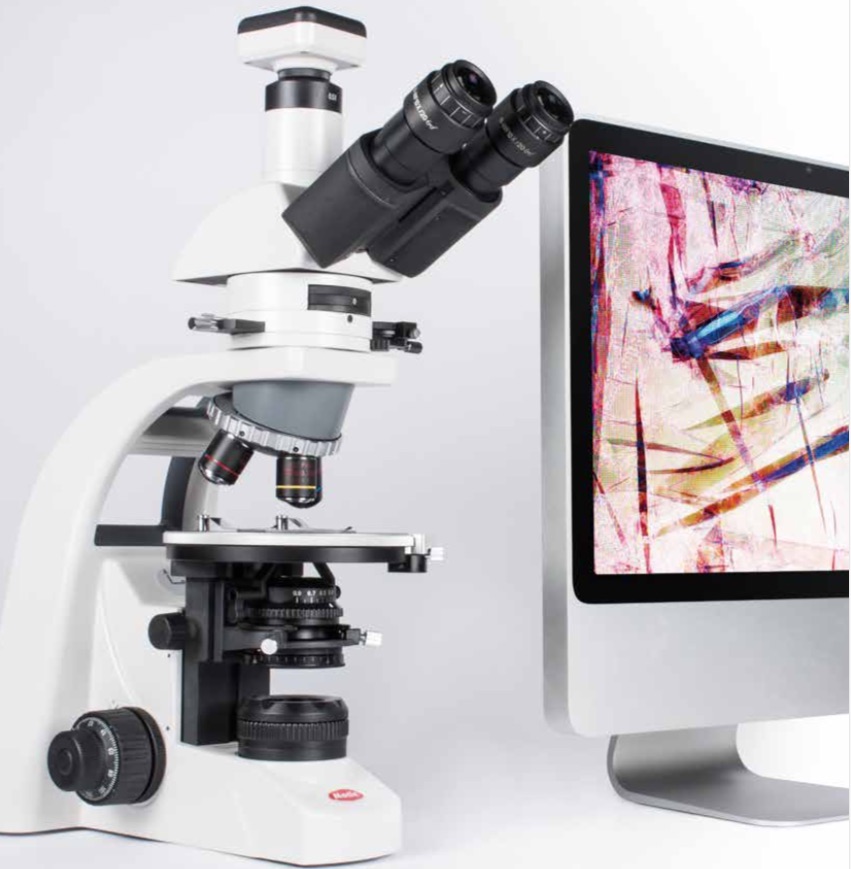

Polarising Microscope - Motic BA310 POL with Microscope camera

Polarising Microscope – Motic BA310 POL with Microscope camera

Photo and C-mount camera adapters

  • 0.35X C-mount camera adapter for 1/3″ chip sensors
  • 0.5X C-mount camera adapter for 1/3″ and 1/2″ chip sensors 0.65X C-mount camera adapter for 2/3″ chip sensors
  • 1X C-mount camera adapter (no lens)

Photo adapter (requires one of the photo eyepieces below)

  • 2.5X photo eyepiece (to be used with Photo adapter)
  • 4X photo eyepiece (to be used with Photo adapter)

Filters

  • Blue filter (Ø 45mm)
  • Green filter (Ø 45mm)
  • Yellow filter (Ø 45mm)
  • Neutral density filter ND2 (Ø 45mm)
  • Didymium filter (Ø 45mm)
