Microscope counting chambers, eyepiece graticules & calibration stage micrometers

£49.00£130.00

Clear

Description

Microscope Counting Chambers, Graticules, Cross Hair eyepiece & Stage Micrometers

Microscope eyepiece graticules and stage micrometer calibration standards. Also Hemocytometer counting chambers, microscopy standard eyepiece scales for eyepiece measurement. Calibration stage micrometers for precise calibration of software on individual microscope objective & zoom magnifications.

Please use the MMS Microscopes Contact page to provide us with your application details. We will respond to your enquiry as soon as possible – Thank You.

  • The graticules are available in 16, 19 and 21mm diameters as standard.
  • Other sizes 18, 23, 26 and 27mm are available on special request.
  • Graticule A = Horizontal micrometer
  • Graticule B = Vertical micrometer

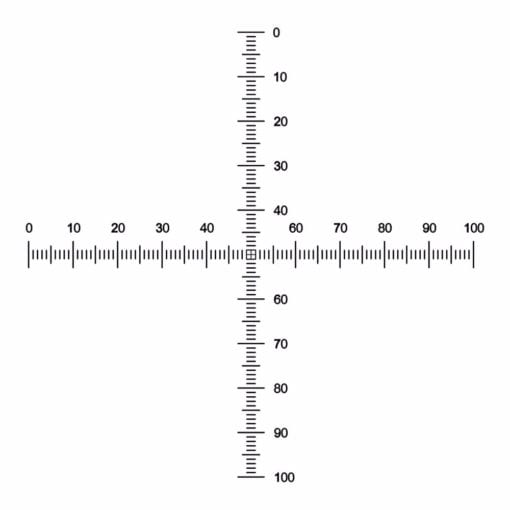

  • Graticule C = Crossed micrometer
  • Graticule D = Micrometer with crossline
  • Please check that your existing eyepiece is focusable & suitable to accept a graticule
  • Contact MMS with your microscope details and eyepiece combination & Request a Quotation
Microscope Eyepiece Graticules

Microscope Eyepiece Graticules

Microscope Eyepiece Graticules

Microscope Eyepiece Graticules

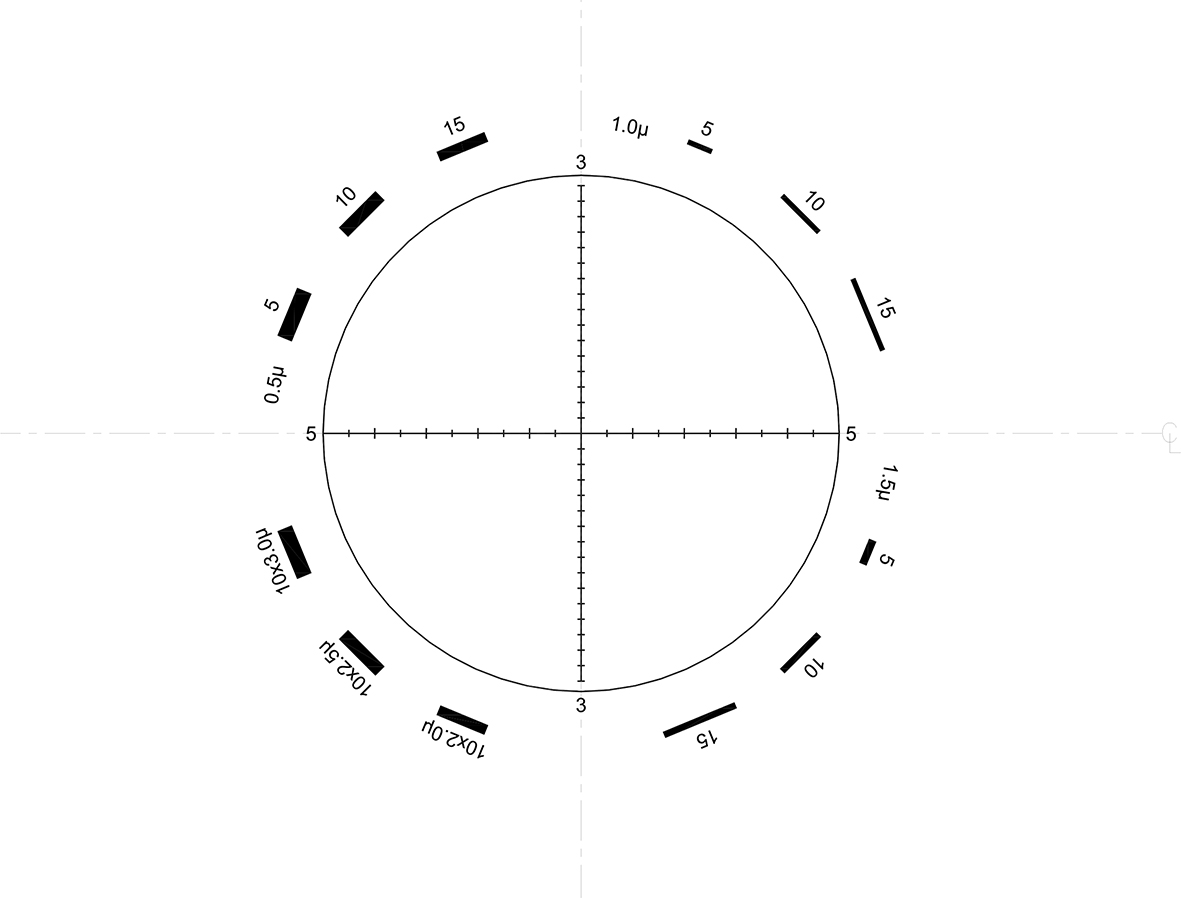

Walton & Beckett Asbestos Fibre Analysis eyepiece graticule

Walton & Beckett Asbestos Fibre Analysis eyepiece graticule

NE48 Microscope graticule Concentric Circles, 1 - 10mm with Crossline Scales

NE48 Concentric Circles, 1 – 10mm with Crossline Scales

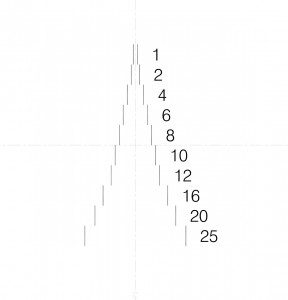

NE19 Gauge Pairs Key Features Eyepiece reticle with 10 pairs of gauge lines

NE19 Gauge Pairs Key Features Eyepiece reticle with 10 pairs of gauge lines

Microscope graticule Vertical Gauge Lines + Horizontal Line

Microscope graticule Vertical Gauge Lines + Horizontal Line

Microscope Half Protractor Eyepiece reticle with 180º protractor, with 10mm scale in 0.5mm divisions

Microscope Half Protractor Eyepiece reticle with 180º protractor, with 10mm scale in 0.5mm divisions

microscope Vertical Scale, 10mm/0.1mm Eyepiece reticle with 10mm length vertical scale subdivided into 100 x 0.1mm divisions

microscope Vertical Scale, 10mm/0.1mm Eyepiece reticle with 10mm length vertical scale subdivided into 100 x 0.1mm divisions

Microscope Eyepiece Crosslines, 0.02mm line width Eyepiece reticle with horizontal and vertical lines, centrally positioned. 0.02mm line width.

Microscope Eyepiece Crosslines, 0.02mm line width Eyepiece reticle with horizontal and vertical lines, centrally positioned. 0.02mm line width.















































Additional information

Eyepiece Micrometer / Graticule

Horizontal Scale mm, Horizontal Scale with Crosshair, Crossed Micrometer Pair, Crosshair, Grid Pattern, Chess Board, Half Protractor, Whipple Grid 100 shares, Concentric Circles, British Standard Globes & Circles, Walton / Beckett Asbestos
