Motic Panthera Tec Pol – Polarising Microscope

  • CCIS Infinity Optical System – Motic Panthera Tec Pol
  • Coded Quintuple Nosepiece with Light intensity memory
  • UC Plan Achromatic (Strain free) Objectives 4x, 10x, 40x & 60x
  • Koehler LED 3W & Quartz Halogen 30W interchangeable

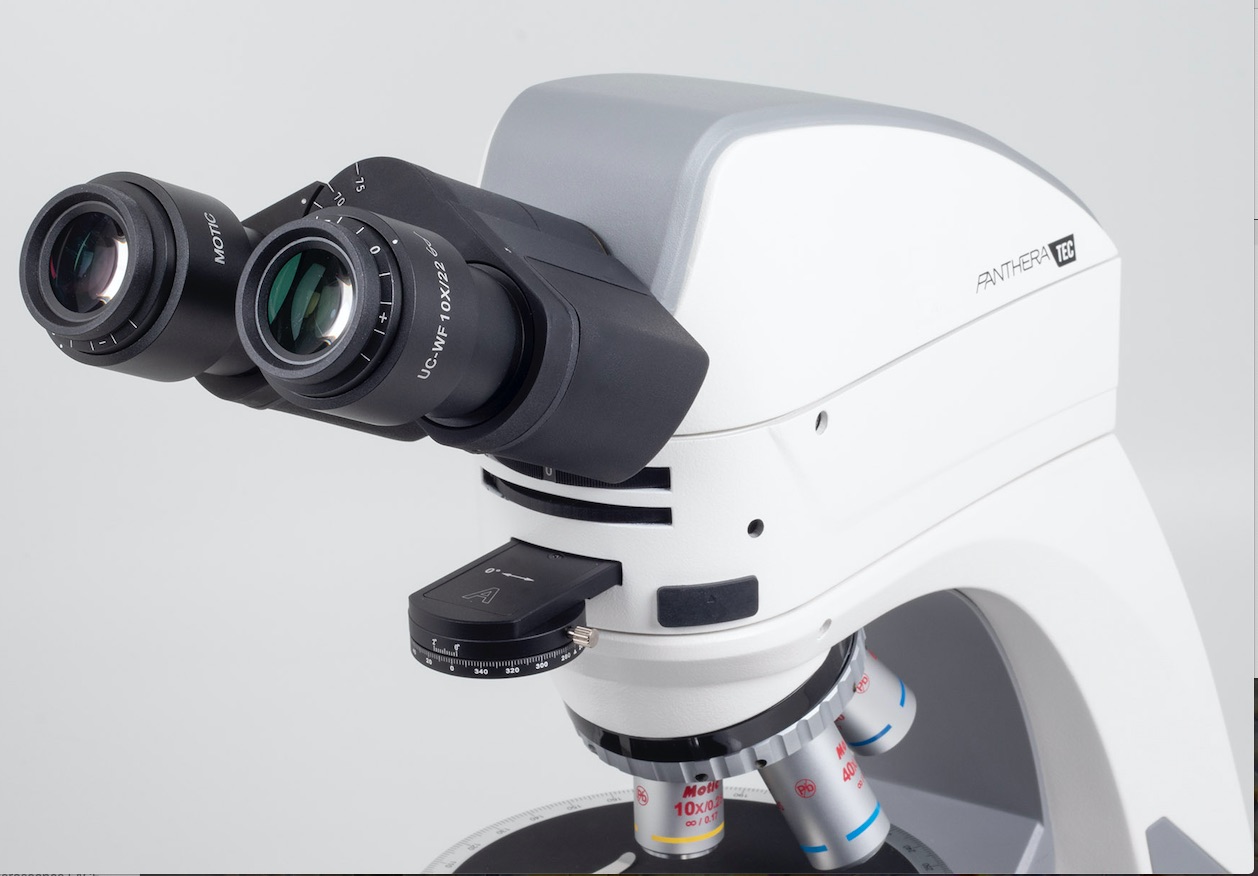

  • Binocular / Trinocular
  • Motic Light Tracer / Light Memory / Nosepiece LED intensity indicator
  • September 23 Tec Pol Microscope Package offers – SAVE 15% off List
  • Contact MMS Microscopes for competitive price packages


Motic Panthera Tec Pol – Polarising Microscope

Motic Panthera Tec Pol Polarising microscope with advanced features for University earth sciences education & Industry polarised light applications. Featuring the very latest microscopy features of the Panthera series.

Furthermore Panthera Tec features ultra contrast optical performance. The image view via the 10x/22mm eyepieces are bright & sharp, benefitting from UC optical coatings on all surfaces & objectives.  Motic light tracer & light intensity memory on every objective change, ensures no more blinded moments.  The coded reversed quintuple nosepiece recalls the correct light intensity whilst changing objective.

In summary, Ergonomic microscope design and advanced performance at a competitive price.

Purchase direct from Motic UK importers MMS Microscopes – Supplied & supported by experts

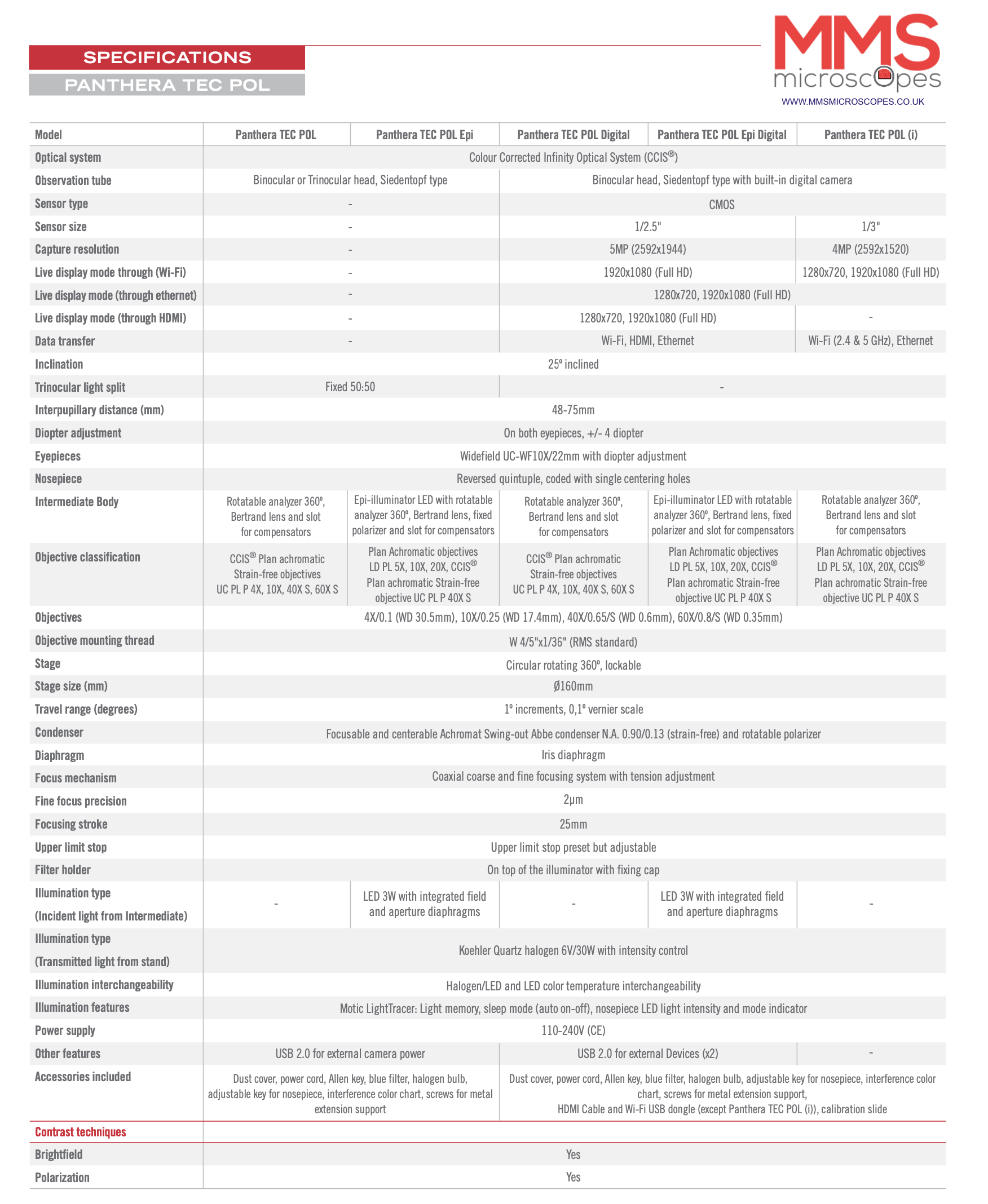

Panthera Tec Polarising microscopes – Standard configuration:-
  • Colour Corrected Infinity Optical System (CCIS®) Trinocular head, Siedentopf type
    25° inclined / Fixed 50:50
  • 48-75mm – Adjustable eyepieces, +/- 4 diopter
  • Widefield UC-WF10X/22mm with diopter adjustment
  • Rotatable Analyzer 360°,
  • Bertrand lens and slot for compensators

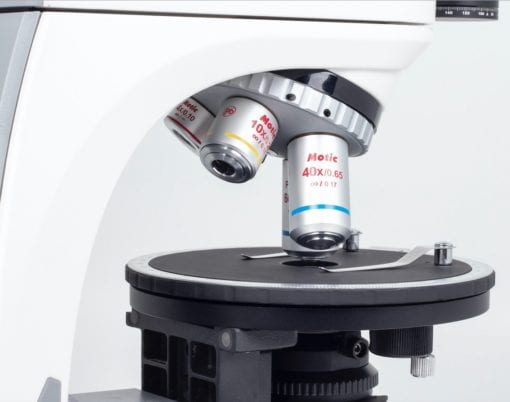

  • Reversed quintuple, coded with single centering holes
  • CCIS® UC Plan Achromatic (strain-free), DIN
  • Objectives 4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 60X/0.8/S (WD 0.35mm)
  • W 4/5″x1/36″ (RMS standard) Upright
  • Circular rotating 360°, lockable Ø160mm
  • 1° increments, 0,1° vernier scale
  • Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polarizer
  • Iris diaphragm
  • Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision = 2μm
  • Focusing Stroke – 25mm
  • Upper limit stop preset but adjustable
  • Filter Holder – On top of the illuminator with fixing cap
  • Transmitted Illumination – Koehler LED 3W & Quartz halogen 6V/30W with intensity control
  • Interchangeable – Halogen / LED and LED colour temperature interchangeability
  • Features – Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator

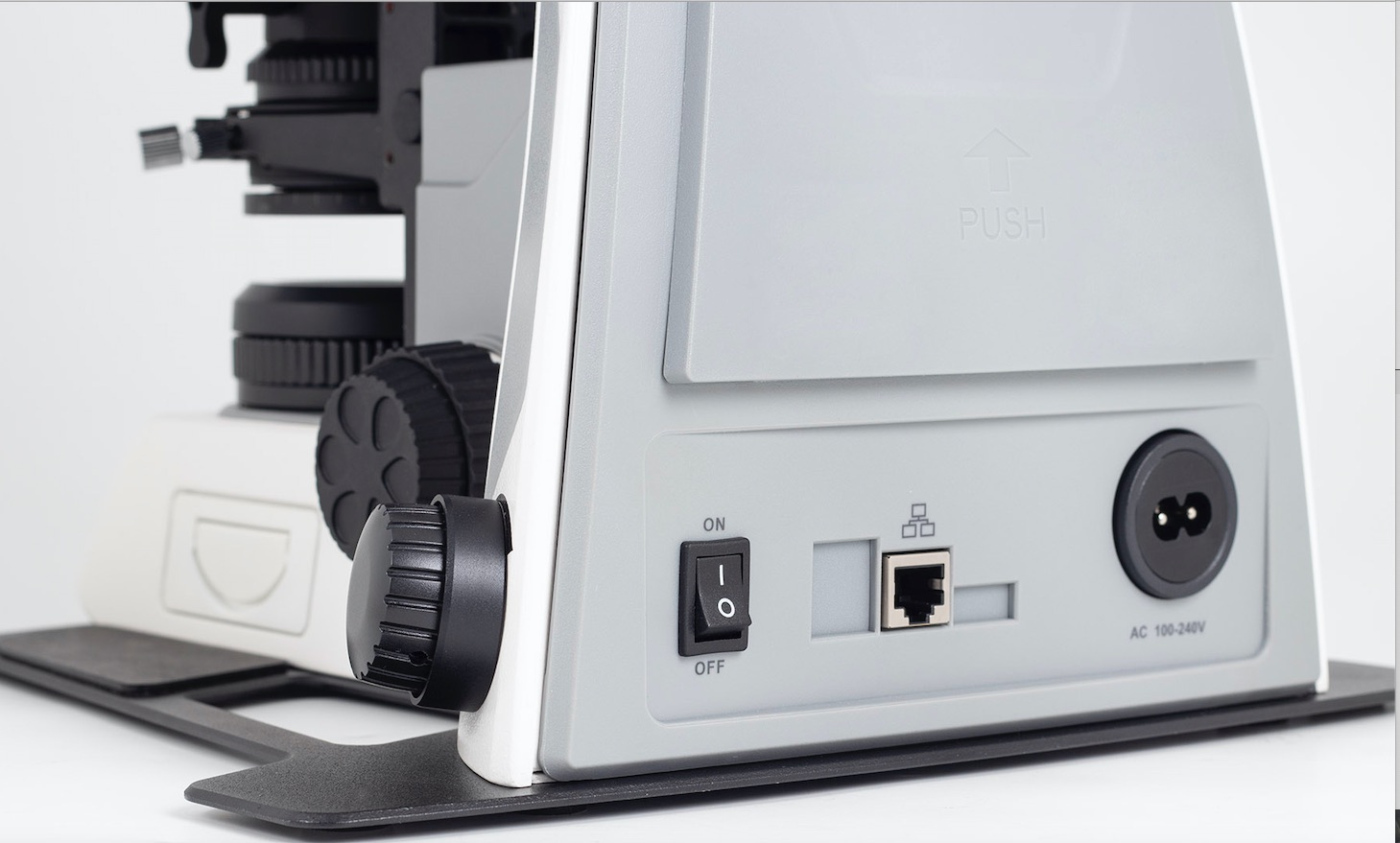

  • Transformer – Internal
  • Power Supply – 110-240V (CE)
  • Includes USB 2.0 for external camera power
  • Included – Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module, adjustable key for nosepiece, interference colour chart, screws for metal extension support
  • Dimensions – 410x300x395mm
  • Net Weight = 9.8kg

Also available Panthera Tec Pol (i) with integrated 4 Megapixel Wi-Fi camera


Find out more here

Optical mineralogy is the study of minerals and rocks by measuring their optical properties. Most commonly, rock and mineral samples are prepared as thin sections or grain mounts for study in the laboratory with a petrographic microscope. Optical mineralogy is used to identify the mineralogical composition of geological materials in order to help reveal their origin and evolution.

  • Earth Sciences
  • Petrology
  • Mineralogy


Polarising microscopy designed for the digital age – unique features, optical performance, build quality & budget friendly.

Motic Panthera Tec Pol from MMS Microscopes

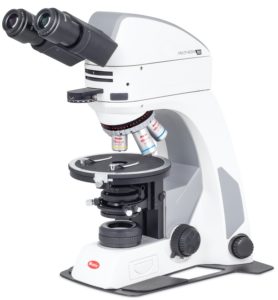

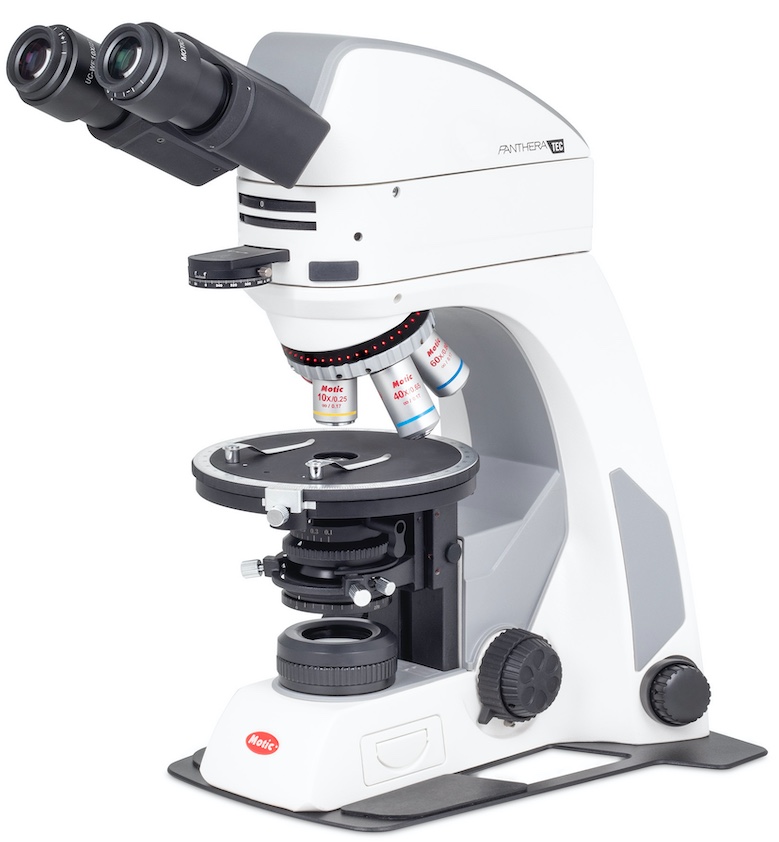

Motic Panthera Tec Pol Microscope

Polarising microscopy for University Education & Industry applications in Petrology, Mineralogy & Geology Motic Panthera Tec Pol Microscope from MMS Microscopes

Motic Polarising optics from MMS Microscopes

Motic Panthera Polarising optics

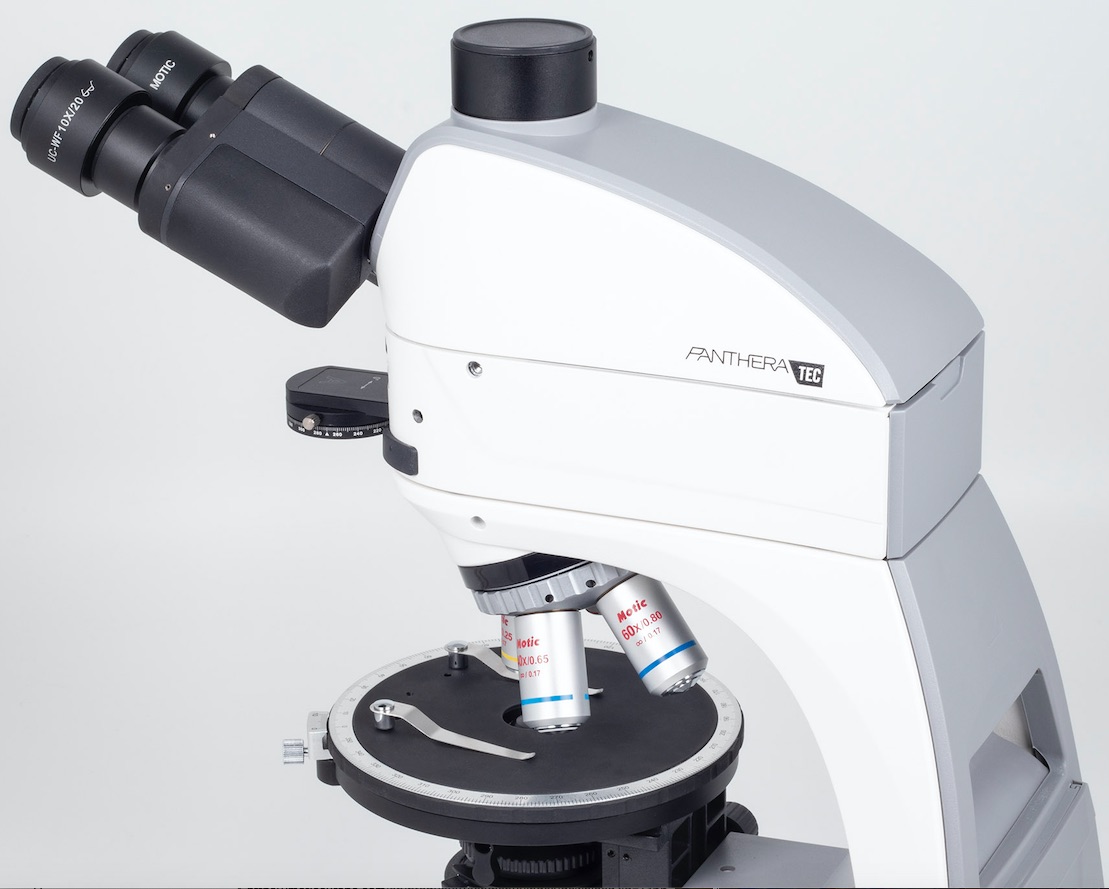

Motic Pol Tec Trino Head

Motic Pol Tec Trino Head

Digital Pol Scope

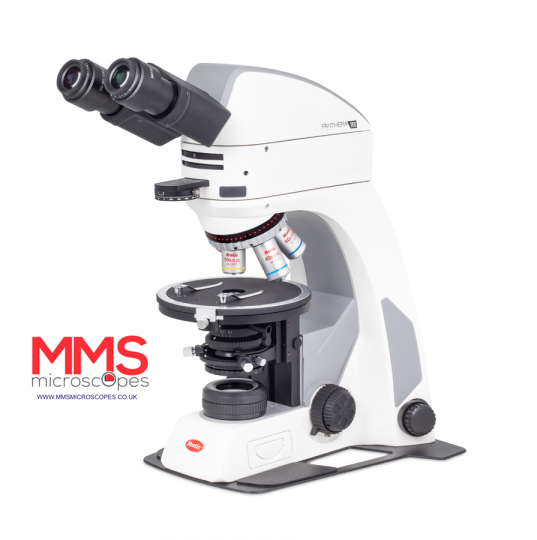

Motic Panthera Tec Pol (i) Digital Polarising Microscope with 4 MP Wi-Fi camera sensor integrated
