Description

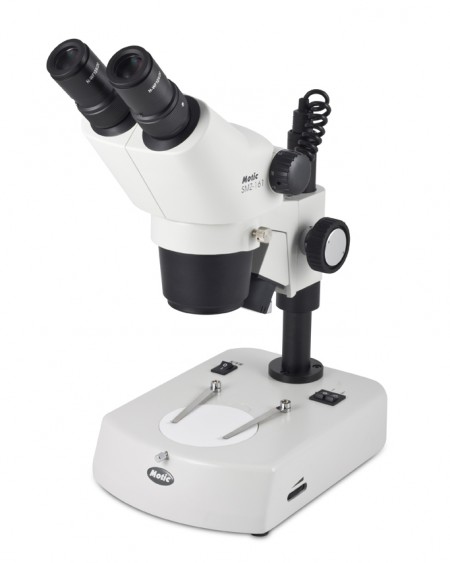

Motic Microscopes SMZ 161 BLED TLED Stereo zoom microscope
Budget friendly zoom microscope with Led incident & transmitted illumination. Featuring a compact footprint stand integrated Led illumination and 6:1 zoom. The 7.5x to 45x magnification is extendable, contact Motic Microscope Sales (MMS) to discuss your application in detail.
SMZ 161 is ideal for a diverse range of applications.
- university education stereo microscopy
- Industry inspection / quality control
- Hobby / field studies zoom microscope
- Dissection microscopy
- Entomology
Recently upgraded LED illumination & optical design providing excellent performance. The design refresh also includes a zoom click-stop mechanism. This provides precise positioning of magnification steps. Ensuring calibration & feature measurements are accurate & repeatable.
Motic Stereo Zoom Microscope SMZ161 TLED Comprises:-
- Greenough zoom optical system
- Trinocular head, 45° inclined, 360° rotating
- Binocular head version SMZ 161 BLED also available
- Widefield eyepieces WF10X/20mm (Standard)
- 6:1 Zoom ratio, WD=110mm
- Objective magnification range: 0.75X – 4.5X
- R2LED: Compact incident/transmitted illumination stand
- Coarse focusing system with tension adjustment
- 3W incident and transmitted LED illumination with intensity control Main supply 100V-240V (CE)
- Black/White and frosted glass stage plates and dust cover
- 10x, 15x & 20x Eyepieces available as options
- 0.3x, 0.5x, 0.63x. 0.75x, 1.5x & 2.0x Objective options to extend mag range & working distance
- 0.3x / 0.5x Supplementary Objectives not suitable with this stand check working distance with sample height
Accessories for SMZ Series Include:-
- 15x & 20x Eyepieces
- Mechanical stage
- Glide stage for R2 stand
- Polarizing equipment B.301 (1-piece rotary
- Darkfield attachment with iris diaphragm
- Jewellery clamp
- DSLR Photo Adaption Kit
- C Mounts to adapt Moticam Microscope Camera / C Mount Camera
- Reticle with Crosshair
- Reticle with 100 divisions in 10mm
- Reticle with 360 protractor
Moticam BTU8 with SMZ161
Add a Wi-Fi camera with 4.0 Megapixel image capture here
Add a Live HDMI Microscope Camera with 6.0 Megapixel Image capture here
Stereo zoom microscope for a variety of applications including:-
- Industry inspection
- Entomology
- Dissection
- Bank Notes & Coins
- Medals inspection
- Forensics
- Palaeontology
- Jewellery setters & watch makers repairers with flex arm
- Hobby microscope
