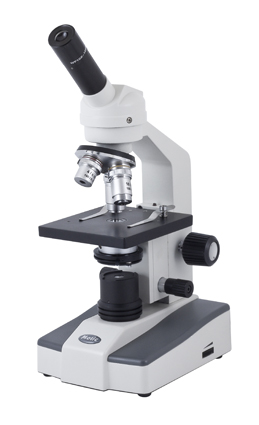

Motic F-11 Series LED Education Line Biology School Microscope

£168.00£179.00

Motic F 1110 LED & F 1115 LED Education light microscope series

Clear
SKU: N/A Category: Tag:

Description

Motic F-110 LED Education biology microscope comprises:-

  • Monocular head, 45° inclined, 360° rotating
  • Widefield eyepiece WF10X/18mm
  • Quadruple revolving nosepiece
  • Achromatic objectives DIN 4X, 10X, 40X S
  • Coarse and fine focusing system with tension adjustment
  • Plain stage with sample clips
  • 0.65 N.A. condenser built in on stage with iris diaphragm
  • LED illumination 20mA, 3.5V, 70mW with intensity control
  • Power supply 220V (CE)
  • Dust cover

Motic F-1115 LED Education biology Microscope comprises:-

  • Monocular head, 45° inclined, 360° rotating
  • Widefield eyepiece WF10X/18mm
  • Quadruple revolving nosepiece
  • Achromatic objectives DIN 4X, 10X, 40X S
  • Coarse and fine focusing system with tension adjustment Plain stage with sample clips
  • Focusable 1.25 N.A. Abbe condenser with iris diaphragm
  • LED illumination 20mA, 3.5V, 70mW with intensity control
  • Power supply 220V (CE)
  • Dust cover
  • Contact MMS Microscopes for all your Education Microscopy requirements
  • Options for the F1110 & 1115 Led series include
  • 60x 0.85/S achromatic objective 1101001701171
  • 100x 1.25/S- oil achromatic objective 1101001701123
  • Reticle with 100 divisions in 10mm with crosshair (19mm)
  • Reticle holder for 18mm eyepiece also required
  • Micrometer eyepiece with 100 divisions in 10mm with crosshair 53100145
  • Mechanical stage 1101001800062
  • Plastic carrying case 53100256
  • Aluminium box 1101001203491

DM 111 – Digital version also available

Additional information

Motic F1110 LED F1115 LED

Motic F1110 LED, Motic F1115 LED
