Description

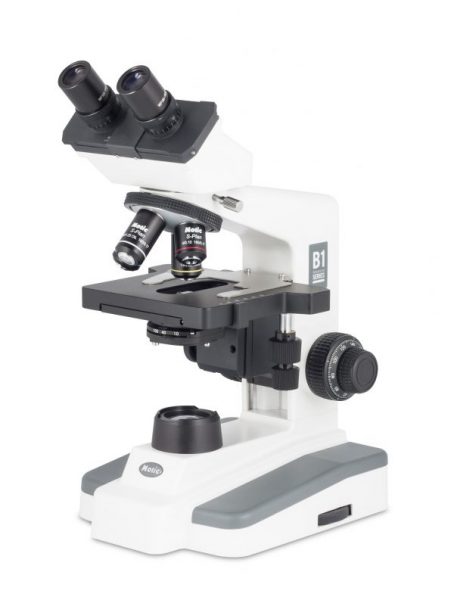

Motic Microscopes B1-220E SP & B1-223E SP Education Lab Microscope
Superior in design and in performance, recently updated and enhanced Motic B1 Elite Series. Designed for University Bioscience education microscopy and Laboratory applications. The B1 series is also the perfect work horse for veterinary applications. With a compact robust designed, superb optical clarity and reliable mechanical engineering. Assuring microscopy departments years of quality performance.
Motic Microscopes B1 series has long been a stalwart of reliable microscopy. This new updated B1 Elite series includes new optics and mechanics normally only found in more expensive models. Motic have ensured this line’s competitiveness and performance for many years ahead. Available with microscope support from MMS Microscopes
Main Motic B1 features
- Semi-Plan objectives SP 4X 10X ,40X S, 100X S-Oil
- Coaxial coarse and fine focusing system with tension adjustment
- Rackless stage
- LED illumination
- Phase contrast, Dark field and Polarization accessories optionally available
Motic Microscopes B1-220E SP Education Lab Microscope comprises:-
- Finite optical system, 160mm Binocular, sliding type 55-75mm
On both tubes , +/- 5 diopter 45° inclined, 360° rotating WF10X/18mm - Quadruple revolving nosepiece with click stops
Objectives – Semi-Planachromatic SP, DIN - 4X/0.10 (WD 17.9mm),
- 10X/0.25 (WD 5.3mm),
- 40X/0.65/S (WD 0.61mm),
- 100X/1.25/S (WD 0.165mm) W 4/5″ x 1/36″ (RMS standard)
- Built-in low position coaxial rackless mechanical stage with sample holder 140x135mm 76x40mm
- Preset and adjustable Focusable 1.25 N.A. Abbe Condenser with iris diaphragm
- Coaxial coarse and fine focusing system with tension adjustment
2μm minimum increment 27mm - 3W LED illumination with intensity control External 110-240V
- Dust cover and immersion oil
- Dimensions 245x190x380mm Weight 6,8Kg
Motic Microscopes B1-223E SP Education Lab Microscope Comprises:-
- Trinocular head, 30° inclined, 360° rotating
- Widefield eyepieces WF10X/18mm
- Quadruple revolving nosepiece
- Semi-Plan objectives SP 4X 10X ,40X S, 100X S-Oil
- Coaxial coarse and fine focusing system with tension adjustment
- Built-in low position coaxial rackless mechanical stage
- Focusable 1.25 N.A. Abbe condenser with iris diaphragm
- LED illumination 3W with intensity control
- Power supply 100V-240V (CE)
- Dust cover and immersion oil
Motic B1 / B3 Accessories
- Add a Moticam Digital microscope camera here
- Contact mms microscopes to adapt a DSLR camera here
- Achromatic super contrast objective ASC 60X/0.85/S (WD=0.1mm)
- Plan phase objective PL Ph 10X/0.25
- Plan phase objective PL Ph 40X/0.65/S
- 10X phase contrast attachment (simple plug in type)
- 40X phase contrast attachment (simple plug in type)
- Phase centering telescope, Ø 23.2mm
- Darkfield attachment (simple plug in type)
- Polarizing set B.208NT
- Rotating table
- Parasitology, Cytology grids / counting chambers – Please Contact MMS Microscopes
- 2.5X SLR Projection lens
- 0.5X C-mount camera adapter for 1/3″ chip sensors
- 0.6X C-mount camera adapter for 1/2″ chip sensors
- 1X C-mount camera adapter (no lens)
