Motic Microscopes BA310 LED Laboratory / Biosciences Education Microscopy





Motic Microscopes BA 310 LED Laboratory & Biosciences Education Microscope

Motic microscopes BA310 designed for the rigours of daily routine laboratory life.  Perfect microscopy solution for demanding applications within Universities, Clinics & Laboratories. In fact any lab or clinical microscopy application, demanding quality, optical performance & sound mechanical design. Full Koehler configuration provides optimum illumination. Optional contrast methods include Phase contrast, Polarisation and Dark field. In addition a Fluorescence Epi Led module is another BA series option.  Multi viewing discussion / teaching microscope options are also available. For further assistance please contact UK Motic Importer MMS Microscopes.

      Motic BA310 standard microscope configuration comprises:-

  • Binocular (or Trinocular) head Siedentopf type, 30 degree inclined, 360° swiveling, 360° rotating
  •  Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
  • Reversed quintuple revolving nosepiece
  • CCIS EF-N Plan Achromatic objectives EF-N PL 4X, 10X, 40X S, 100X S-Oil
  • Coaxial coarse and fine focusing system with tension adjustment
  • Built in low position coaxial mechanical stage (Right-hand control)
  • Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slot
  • Koehler illumination 3W LED with intensity control
  • Power supply 100V-240V (CE)
  • Immersion oil (5ml), power cord, Allen hexagonal key, thumb screw, vinyl dust cover

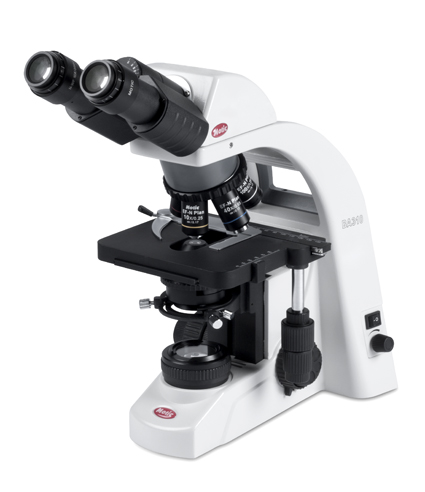

  • Motic Microscopes BA310 LED binocular Model Code 1100100401471
  • Motic Microscopes BA310 LED Trinocular Model Code 1100100401501

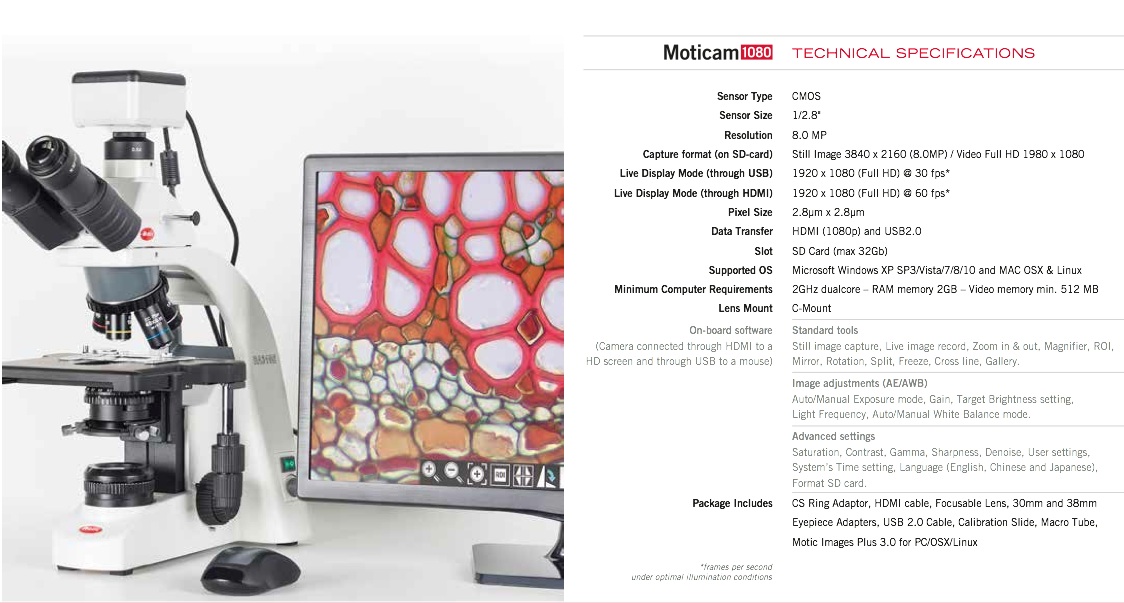

Moticam 1080 INT Digital Microscope Camera

Moticam 1080 INT Digital Microscope Camera

Moticam INT Digital camera with screen

Moticam INT Digital camera with screen





Additional information

Viewing Head / Int Camera / Moticam 5+

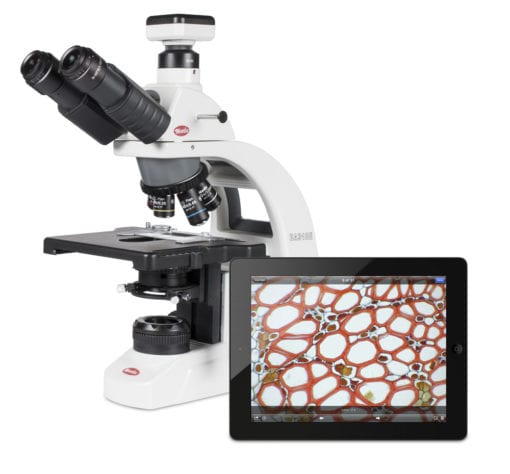

Binocular, Trinocular, Moticam 1080 INT, BA310E + Moticam 5
