Description

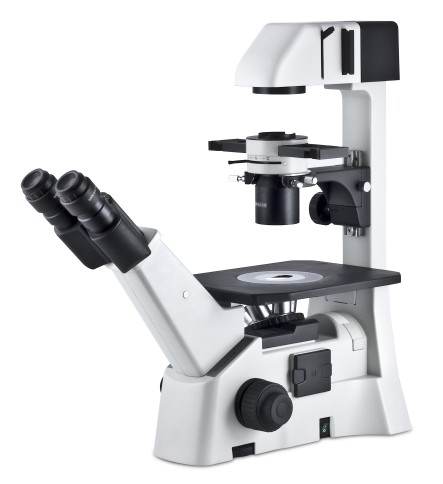

The AE31 Elite is a refined inverted microscope with an extended focus. The AUTO-OFF via IR sensor is an energy-saving feature of the AE31E and valid throughout the working day. The new LIGHT MEMORY function, based on an encoded 5-fold nosepiece, will recall the last light intensity setup when changing objective. No need to adjust the illumination when changing magnification. To harmonize the optical setup of our CCIS© Infinity concept, the AE31 Elite works with the newest generation of LWD Plan Achromatic lenses: Only one Phase ring is needed for Phase 10X up to 40x with the objective Phase 4X for fast screening is available as an option. A fully corrected intermediate image is ready for digital access. Upgrade options like Fluorescence are available with the AE31E series Inverted microscope.

Motic Microscopes Inverted AE31E Elite Series Binocular Microscope Comprises:-
  • Binocular head Siedentopf type, 45o inclined
  • Phase slider Ph1, brightfield, Ph3
  • Hard coated stage with metal and glass stage inserts
  • ELWD condenser N.A. 0.30
  • Coaxial coarse and fine focusing adjustment
  • CCIS Plan Achromatic Phase objective PL Ph10X, LWD PL Ph20X, LWD PL Ph40X
  • CCIS Plan Achromatic objective PL4X
  • Side facing quintuple nosepiece
  • Widefield high eyepoint eyepieces WFPL10X/22mm with diopter adjustment on both eyepieces with rubber eyecups
  • Phase centering telescope Koehler illumination quartz halogen 6V/30W with external lamp house and intensity control
  • Power supply 100V-240V (CE)
  • 45mm blue, green interference and ground glass filters Power cord, hexagonal key, vinyl dust cover
  • Model Code 1100100200565 – AE31E Binocular with 6v/30w quartz halogen lamp house
  • Model Code 1100100200576 – AE31E Trinocular with 6v quartz halogen lamp house
  • Model Code 1100100200584 – AE31E Binocular with 12v/100w quartz halogen lamp house
  • Model Code 1100100200594 – AE31E Trinocular with12v/100w quartz halogen
  • Contact MMS Microscopes for Motic Support / Request a Quotation
  • Motic AE31E +EPI-Fluorescence with 100w lamphouse

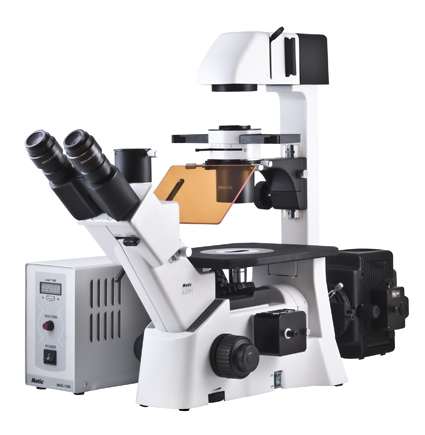

    Motic AE31E +EPI-Fluorescence with 100w lamphouse

  • Motic AE31E inverted + EPI-Fluorescence attachment
Motic Microscopes AE31 Inverted Microscope Accessories Include:-
Motic Microscopes Reticles
  • Reticle with crosshair (Ø25mm)
  • Reticle with 100 divisions in 10mm (Ø25mm)
  • Reticle with crossed double scale 100 divisions in 10mm (Ø25mm)
CCIS® Plan achromatic objectives – PL
  • CCIS® Plan achromatic objective PL 4X/0.10 (WD=12.6mm)
  • CCIS® Plan achromatic objective PL 10X/0.25 (WD=16.8mm)
  • CCIS® Plan achromatic objective LWD PL 20X/0.3 (WD=4.7mm)
  • CCIS® Plan achromatic objective LWD PL 40X/0.5 (WD=3.0mm)
  • CCIS® Plan achromatic Phase objectives – PL Ph
  • CCIS® Plan achromatic Phase objective PL Ph 4X/0.10 (WD=12.6mm) Ph0
  • CCIS® Plan achromatic Phase objective PL Ph 10X/0.25 (WD=4.1mm) Ph1
  • CCIS® Plan achromatic Phase objective LWD PL Ph 20X/0.3 (WD=4.7mm) Ph1
  • CCIS® Plan achromatic Phase objective LWD PL Ph 40X/0.5 (WD=3.0mm) Ph1
Motic Microscopes AE31 Inverted Stage accessories
  • Glass stage insert
  • Metal stage insert
  • Auxilliary stages (2 pieces)
  • Attachable mechanical stage with well plate holder (128 x 86mm)
  • Well plate holder (132x88mm)
  • Ø 35mm Petri dish holder (only applicable with 1101000200262)
  • Ø 54mm Petri dish holder with slide holder 26x76mm
  • Ø 65mm Petri dish holder with slide holder 35x76mm Hemacytometer holder (35 x 76mm)
