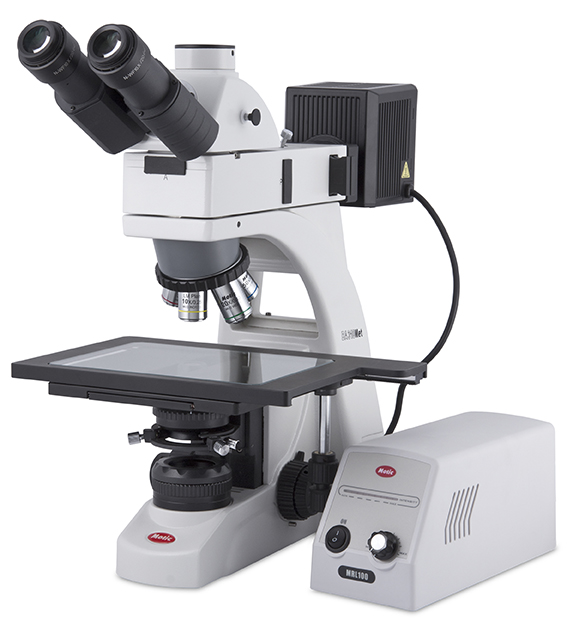

Metallurgical Microscope Motic BA310 MET-T (6″ x 4″ sample stage)

  • Motic Microscopes BA310 MET T Metallurgical Microscope
  • Trinocular & Binocular Head version
  • 6 x 4″ Stage
  • Incident / Transmitted Illumination
  • Contact Motic UK Support specialists MMS Microscopes


The Motic BA310MET series, an affordable and powerful Metallurgical microscope

Industrial metallurgical inspection, failure analysis & quality control for opaque materials, minerals and metallurgical samples. Motic Microscopes BA310MET a budget friendly met microscope for industry & Education.
  • The BA310MET-T model has a Transmitted light option that allows easy handling and viewing also of transparent samples.
  • The BA310MET-H setup contains a more flexible focusing device, dedicated to the examination of large samples.
Motic Microscopes BA310 MET-T (6″ x 4″) Metallurgical Microscope with Incident / Transmitted Illumination Comprises:-
  • Trinocular head Siedentopf type, 30° inclined, 360° swivelling, (Light split 100:0/20:80)
  • Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
  • Reversed quintuple revolving nosepiece
  • CCIS LM Plan achromatic objectives LM PL 5X, 10X, 20X, 50X
  • Coaxial coarse and fine focusing system with tension adjustment
  • Stroke 6″x4″ stage with a 150x100mm range and a stage area 300x180mm with glass plate
  • Focusable Abbe condenser N.A. 0.85 with iris diaphragm
  • Epi-illuminator 12V/50W quartz halogen with integrated field and aperture diaphragms and external lamp house
  • Power supply 115-230V (CE)
  • Transmitted Koehler illumination quartz halogen 6V/30W with intensity control
  • Power supply 100-240V (CE)
  • 45mm blue filter, 32mm blue, yellow and frosted filters, power cord, Allen hexagonal key, vinyl dust cover
  • Request a Quotation from MMS Microscopes

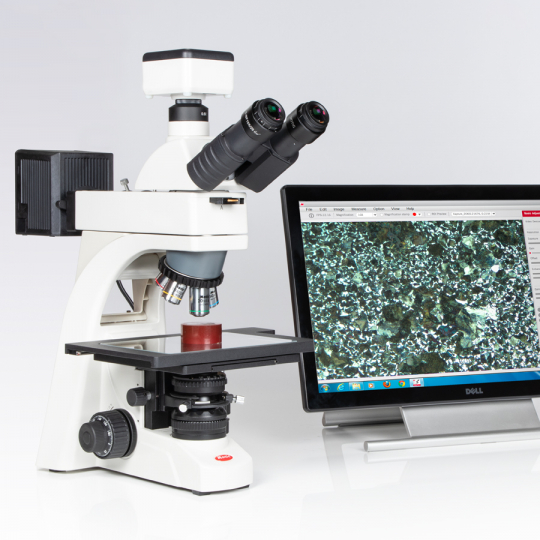

BA310 Met with 1080 HD Camera

Materials lab BA310 Met microscope with 1080 HD Camera Live view Image capture & video record to SD / PC

Additional information

Viewing Head Bino / Trino Option

With Trinocular Head / Camera Port, With Binocular Eyepiece Viewing Head
