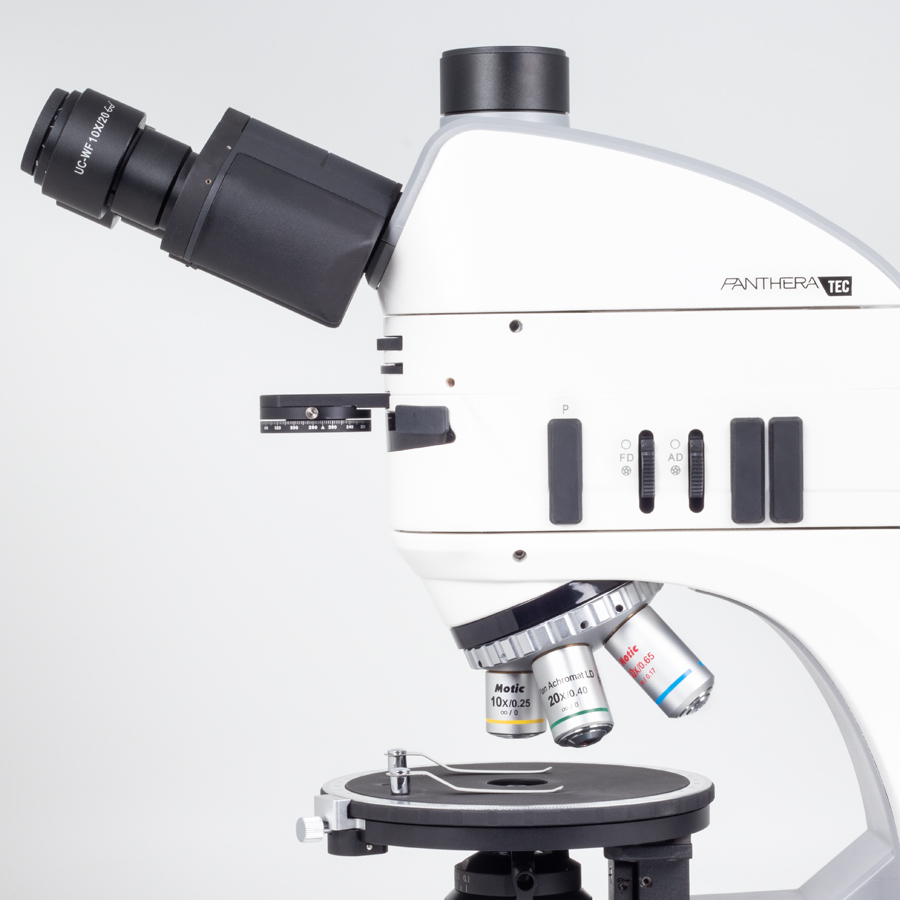

Incident & Transmitted light Polarising microscope – Motic Panthera Tec Pol Epi


  • Incident & Transmitted light Polarising microscope
  • Motic Panthera Tec Pol Epi
  • Latest design & unique features
  • Please specify model spec when requesting a quotation



Incident & Transmitted light Polarising microscope – Petrology & Geology Microscopy

Providing higher performance polarised light techniques for petrology & geology microscopy applications.

Motic Panthera Tec Pol Epi Comprises:-
  • Colour Corrected Infinity Optical System (CCIS®)
  • Trinocular head, Siedentopf type
    25° inclined / Light Split = Fixed 50:50
  • Widefield UC-WF10X/20mm with diopter adjustment
  • Epi-illuminator LED with rotatable analyzer 360°,
  • Bertrand lens, fixed polarizer and slot for compensators
  • Reversed quintuple, coded with single centering holes
  • CCIS® LD Plan Achromatic & UC Plan (strain-free), DIN
  • 5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), UC 40X/0.65/S (WD 0.6mm)
  • Objective mounting thread = W 4/5″x1/36″ (RMS standard)
  • Circular rotating 360°, lockable Ø160mm
  • Travel Range = 1° increments, 0,1° vernier scale
  • Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polarizer
  • Iris diaphragm
  • Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision = 2μm
  • Focusing stroke = 25mm
  • Upper limit stop preset but adjustable
  • Incident = LED 3W with integrated field and aperture diaphragms
  • Transmitted = Koehler LED 3W & Quartz halogen 6V/30W with intensity control
  • Halogen/LED and LED color temperature interchangeability
  • Motic LightTracer: Light memory, sleep mode (auto on-off), Nosepiece LED light intensity and mode indicator
  • USB 2.0 for external camera power
  • Accessories Included – Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module, adjustable key for nosepiece, interference color chart, screws for metal extension support
  • Dimensions – 410x300x450mm
  • Net Weight – 10.4kg

Digital version also available with integrated camera sensor

Contact MMS Microscopes for expert advice and competitive price package with support here


Additional information

Panthera TEC POL

Panthera TEC POL Trino, Panthera TEC POL Epi Trino, Panthera TEC POL Cloud, Panthera TEC POL Epi Cloud
