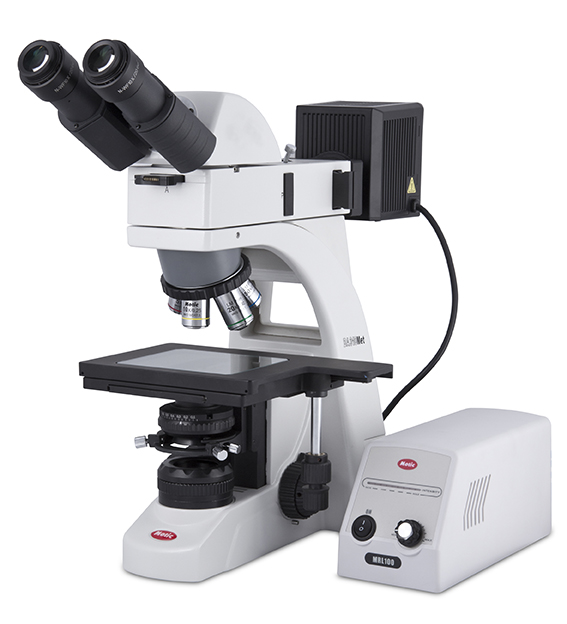

Trinocular Metallurgical Microscope Motic Microscopes BA310 MET-T (3″ x 2″)

£2,995.00£3,160.00

Motic Microscopes BAT 310 MET-T Trino / Bino Metallurgical Microscope

  • Trinocular head Siedentopf type, 30° inclined, 360° swiveling, (Light split 100:0/20:80)
  • Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
  • Reversed quintuple revolving nosepieceCCIS LM Plan achromatic objectives LM PL 5X, 10X, 20X, 50X
  • Coaxial coarse and fine focusing system with tension adjustment
  • Stroke 3″x2″ stage with a 75x50mm range and a stage area 240x140mm with glass plate
  • Focusable Abbe condenser N.A. 0.85 with iris diaphragm
  • Epi-illuminator 12V/50W quartz halogen with integrated field and aperture diaphragms and external lamp house
  • Power supply 115-230V (CE)
  • Transmitted Koehler illumination quartz halogen 6V/30W with intensity control
  • Power supply 100-240V (CE)
Clear

Description

Motic BA310MET series with Incident & transmitted illumination. An affordable and powerful Metallurgical microscope for materials education & research laboratory. Equipped equally for the materials laboratory in Industry manufacturing & Education.

Motic Microscopes BAT 310 MET-T Trino Metallurgical Microscope Comprises:-
  • Trinocular head Siedentopf type, 30° inclined, 360° swiveling, (Light split 100:0/20:80)
  • Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
  • Reversed quintuple revolving nosepieceCCIS LM Plan achromatic objectives LM PL 5X, 10X, 20X, 50X
  • Coaxial coarse and fine focusing system with tension adjustment
  • Stroke 3″x2″ stage with a 75x50mm range and a stage area 240x140mm with glass plate
  • Focusable Abbe condenser N.A. 0.85 with iris diaphragm
  • Epi-illuminator 12V/50W quartz halogen with integrated field and aperture diaphragms and external lamp house
  • Power supply 115-230V (CE)
  • Transmitted Koehler illumination quartz halogen 6V/30W with intensity control
  • Power supply 100-240V (CE)
  • 45mm blue filter, 32mm blue, yellow and frosted filters, power cord, Allen hexagonal key, vinyl dust cover
  • System Part No: 11001100402603
  • Check out our microscope camera range here
  • Contact MMS Microscopes to discuss your application or Request a Quotation Here

Additional information

Trinocular / Binocular Viewing Head

Trinocular Head Version, Binocular Head Version
