Inverted microscope with Epi Fluorescence Motic Microscopes AE31

Description

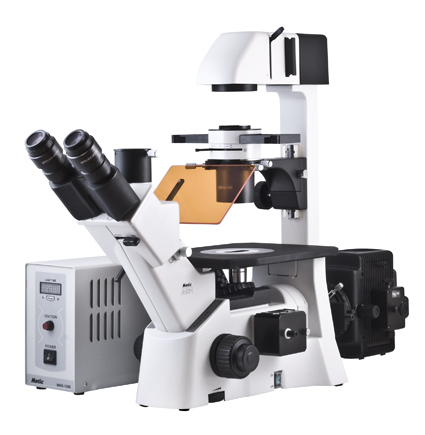

Motic Microscopes AE31E Inverted / Fluorescence Microscope

Inverted Epi Fluorescence microscope model AE31 Elite.  Recently upgraded inverted microscope with extended focus range. With Auto-OFF via IR sensor. New Light Memory function will recall last light intensity setup when changing objective. The AE31 Elite works with the latest generation of LWD Plan Achromatic lenses. Upgrade options include Fluorescence, details of which are listed below.

  • Trinocular head Siedentopf type, 45° inclined (Light split 100:0/0:100)
  • Side facing quintuple nosepiece
  • Coaxial coarse and fine focusing adjustment
  • Hard coated stage
  • Koehler illumination quartz halogen 12V/100W with external lamp house and intensity control
  • Auto-OFF and Light Memory function Power supply 100V-240V (CE)
  • 45mm blue, ground glass and green interference filters, Allen hexagonal key, vinyl dust cover and power cord
  • Contact MMS Microscopes – Request a Quotation

Complete Epi-Fluorescence attachment for AE consists of the below individually listed parts:

  • Epi-Fluorescence attachment with filter cassette
  • Lamphouse, collector lens and mercury lamp socket for HBO 100W
  • Mercury lamp HG100W

Standard fluorescence filter sets

  • DAPI and Hoechst set Exciter D350/50x Dichroic 400DCLP Emitter D460/50m
  • FITC/RSGFP/Fluo 3/DIO Acradine orange(+RNA) set Exciter D480/30x
  • Dichroic 505DCLP
  • Emitter D535/40m



FITC (Long Pass) set Exciter D470/40x Dichroic 505DCLP Emitter E515LPv2

  • TRITC (Rhodamine)/Dil/Cy3 set Exciter D540/25x
  • Dichroic 565DCLP
  • Emitter D605/55m

Texas Red/Cy3.5 set

  • Exciter D560/40x
  • Dichroic 595DCLP
  • Emitter D630/60m

Cy5, Alexa Fluor 633, Alexa Fluor 647 set

  • Exciter HQ620/60x
  • Dichroic Q660LP
  • Emitter HQ700/75m

Cyan GFP set

  • Exciter D436/20x
  • Dichroic 455DCLP
  • Emitter D480/40m
    • Endow GFP Bandpass Emission set Exciter HQ470/40x
    • Dichroic Q495LP
    • Emitter HQ525/50m

    Yellow GFP BP (10C/Topaz) set Exciter HQ500/20x
    Dichroic Q515LP
    Emitter HQ535/30m

    Empty set

Objectives – PL for AE 31E Series Include:-

  • CCIS Plan achromatic objective PL 4X/0.10 (WD=12.6mm)
  • CCIS Plan achromatic objective PL 10X/0.25 (WD=16.8mm)
  • CCIS Plan achromatic objective LWD PL 20X/0.3 (WD=4.7mm)
  • CCIS Plan achromatic objective LWD PL 40X/0.5 (WD=3.0mm)

Phase Contrast Objectives PL Ph

  • CCIS Plan achromatic Phase objective PL Ph4x/0.10 (WD=12.6mm) Ph0
  • CCIS Plan achromatic Phase 10X/0.25 (WD=4.1mm) Ph1
  • CCIS Plan achromatic Phase 20X/0.3 (WD=4.7mm) Ph1
  • CCIS Plan achromatic Phase 40X/0.5 (WD=3.0mm) Ph1

Stage accessories

Glass stage insert

Metal stage insert

Auxilliary stages (2 pieces)

Attachable mechanical stage (128 x 86mm)

Well plate holder (132x88mm)

Ø 35mm Petri dish holder (only applicable with 1101000200262)

Ø 54mm Petri dish holder
Ø 65mm Petri dish holder

Hemacytometer holder (35 x 76mm)

Condensers

ELWD condenser N.A. 0.30 (WD=72mm)

Condenser N.A. 0.50 (WD=28mm)

Phase Contrast accessories

Empty 3-position phase slider, centerable

Phase stop 0.3 Ph0 (4X)
Phase stop 0.3 Ph1 (10X, 20X, 40X)

Phase stop 0.5 Ph0 (4X)

Phase stop 0.5 Ph1 (10X, 20X, 40X)

Phase centering telescope

Photo and C-mount camera adapters

0.5X C-mount camera adapter for 1/3″ and 1/2″ chip sensors

0.65X C-mount camera adapter for 2/3″ chip sensors

1X C-mount camera adapter (no lens)
