Description

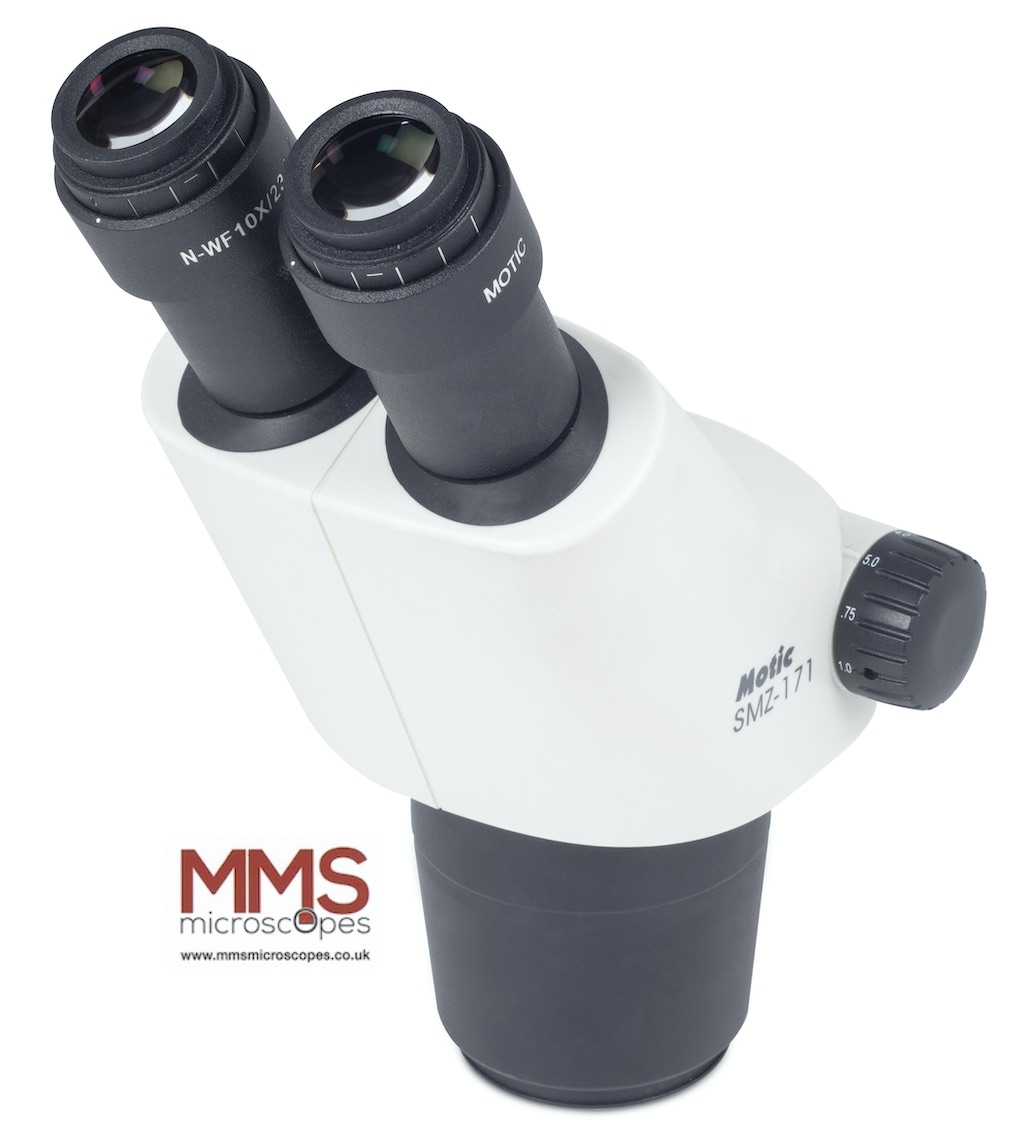

OEM Inspection Zoom Microscope Motic SMZ 171-BH 60° Viewing Angle viewing angle
Machine mounting & inspection stereo zoom microscope with 60° viewing angle. Popular within the micro-electronics industry. Manufacturing Inspection applications demanding a steep viewing angle with comfortable viewing position. Offering long working distance inspection with excellent optical performance. MMS Microscopes offer this solution with a choice of focus arms for easy machine & stand adaption. Replacement for the Leica S6 60° head users. Please do contact MMS Microscopes for information & expert support.

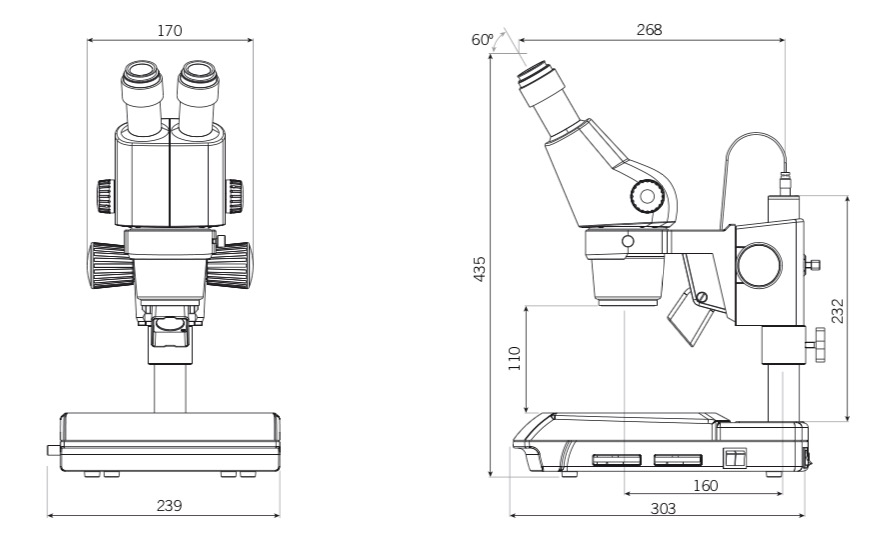

Motic SMZ 171-BH with 60° viewing angle specification:-
- Greenough zoom optical system
- Binocular head, 60° inclined eyepiece viewing
- Widefield adjustable eyepieces N-WF10X/23mm
- 15x WF & 20x WF Eyepieces also available
- 6.7:1 Zoom ratio, Standard WD=110mm
- Objective magnification range: 7.5X – 50X (with 10x WF Eyepieces)
- ESD feature (Electrostatic Discharge)
- 0.75x, 0.63x & 0.5x Objectives to extend working distance
- Leica S6 60° OEM machine mounted zoom microscope replacement
- Pull Tester, Wire & Ball Bonder Zoom Optics
- Inspection / Quality Control Lab, Test & Failure Analysis
- Long Arm / Boom, Articulated table mounted stands available
- Jewellers, watch makers & setters flex arm microscope
- Vertical LED Illuminator attachment option for through hole inspection
- Contact MMS Microscopes To Discuss Your Application Here
OEM Stereo Zoom Microscope optics SMZ 171 60°
LED Vertical illuminator for Motic stereo zoom microscope
