Description

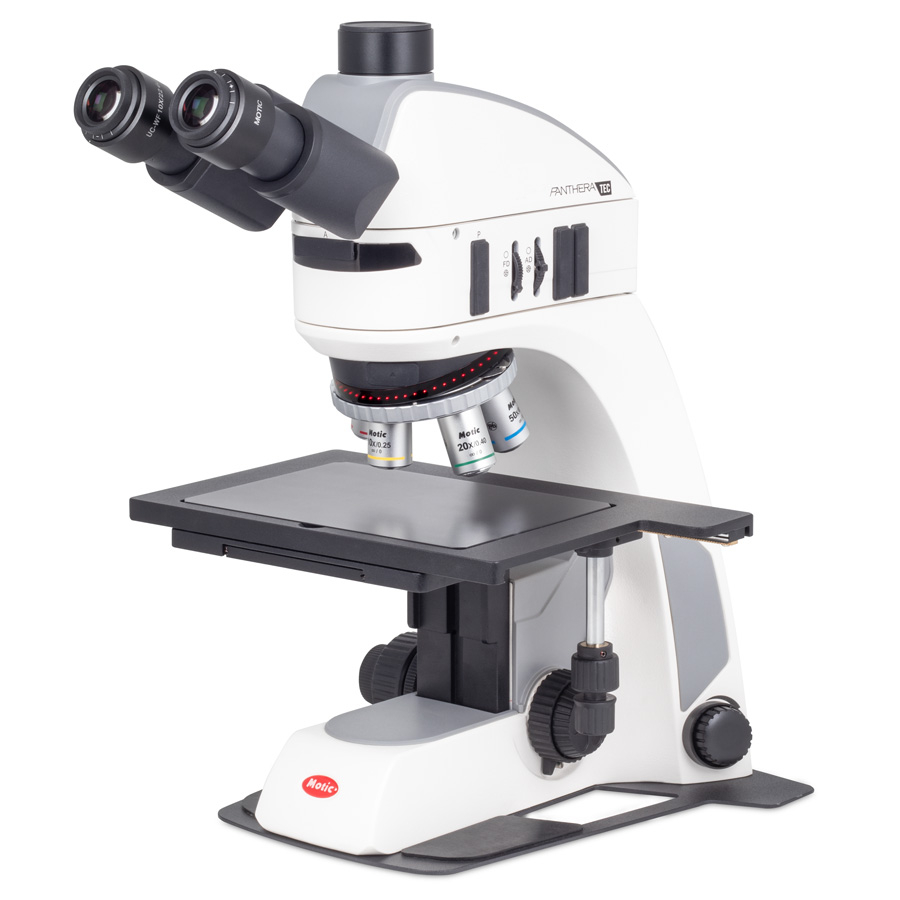

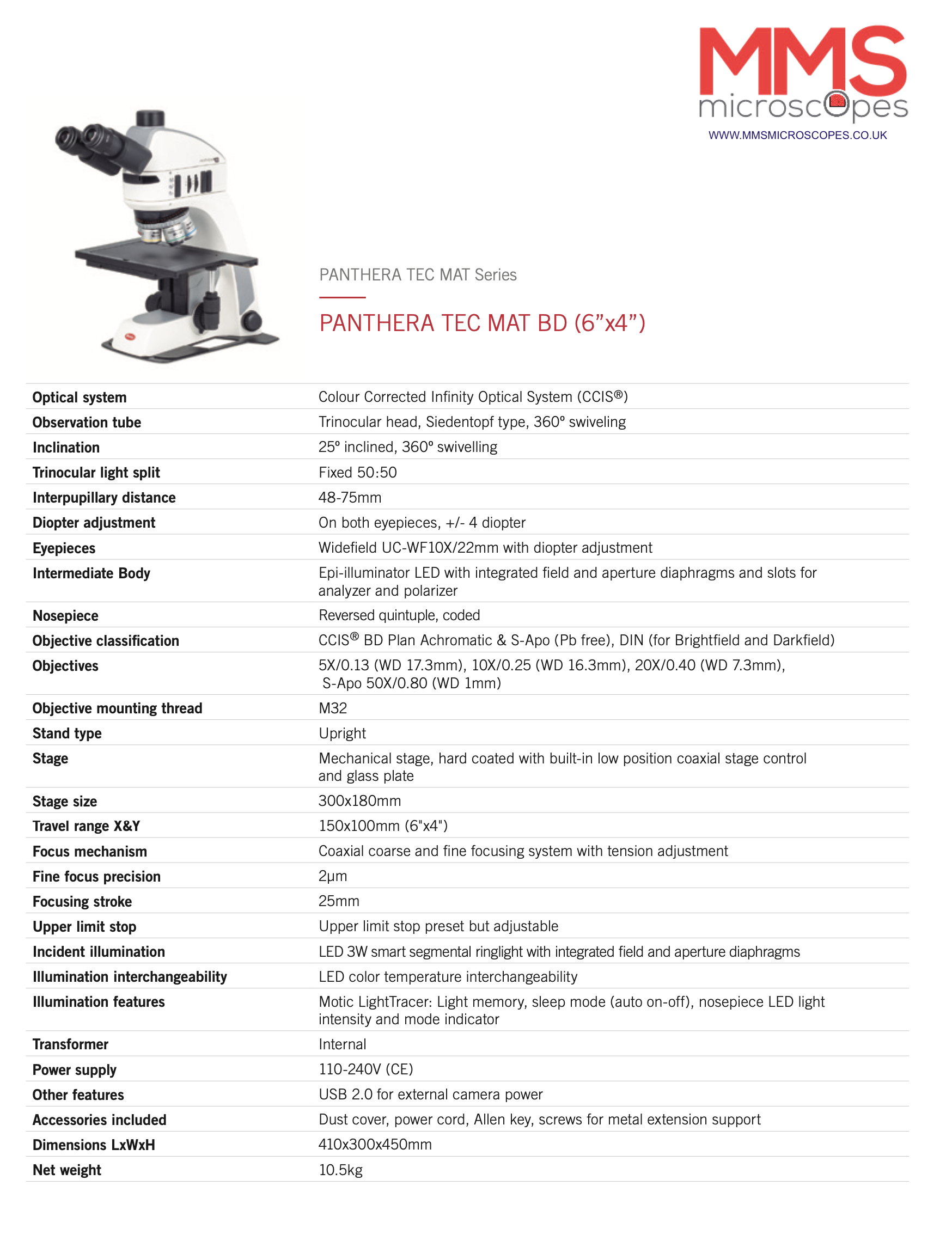

Motic Panthera TEC MAT BD (6″x4″) 1100104600221
System comprises:-
- Trinocular Head 25° inclined, 360° swivelling (Light Split 50/50 fixed)
- Widefield high eye point eyepieces UC-10x/22mm with diopter adjustment
- Compact reflected 3W LED illuminator for BF/DF with integrated field & aperture diaphragms
- Smart segmental darkfield ring light with one button switch
- Reversed coded quintuple nosepiece with light tracer (Intelligent light management)
- Plan Achromatic objectives BD PL 5x, 10x, 20x
- Plan S-Apochromatic objective BD PL S-APO 50x
- Coaxial course & fine focsing
- Built in low position mechanical stage 6″x4″ with 300x180mm surface & 150x100mm travel range
- Motic Light Tracer: Light memory, sleep mode, nosepiece Led light intensity & mode indicator
- USB Port for external camera power supply
- Power supply 100-240V (CE)
- Power cord, hex key, vinyl dust cover, screws for metal extension support
Motic Panthera Tec Mat – Materials Lab Microscope
Panthera Tec Mat a “Materials Lab” microscope feature packed and competitively priced. Designed & manufactured with components & features to enhance your microscopy sample work flow. Paramount to the design is user practicality and ergonomics. In particular Panthera’s automated light management system. This provides digital light intensity control with a coded LED nosepiece. Save on consumable cost with energy efficient LED illumination. Providing optimum light intensity level with memorising light intensity at each objective position. The combination of LED nosepiece and LED condenser, automates the workflow even more. Automatically loading a specific N.A. depending on the Objective in the light-path.
Panthera TEC Series is available with Metallurgical and Polarization stand configurations. Furthermore a wide range of intermediate modules and specific optics are now available. MMS Microscopes are Industrial inspection & Met lab failure analysis specialists. Panthera Met microscope – the perfect met lab package for inspection & failure analysis microscopy . Competitively priced with support assured for industrial inspection, failure analysis and material sciences applications.
PantheraTEC MAT – Next generation advanced Episcopic metallurgical microscopes feature:-
- Eyepieces – UC WF 10x / 22
- Head – Trinocular 50 / 50 split Photo port / Eyepieces
- Objectives LM Plan/ LM Plan BD / Achromat 5x – 100x
- Nosepiece – Quintuple / Coded
- Stage Options – 3″ x 2″ / 6″ x 4″
- Condenser – LED Condenser
- Incident Illumination – 3W LED
- USB for external camera power
- LED Nosepiece light inc Indicator
- Contrast Techniques – Epi BF / DF / Simple POL / Halogen / LED
Panthera TEC MAT is a new generation of advanced Episcopic metallurgical microscopes for inspection and analysis. Composed of 4 models, you can choose between contrast methods like DIC, Darkfield, or the new Segmentable Darkfield, as well as Halogen or LED light sources. Producing superb met lab imaging with the impressive Motic LM Plan BD objective range.
