Description
Motic Panthera C2 Lab microscope with 4K Live imaging camera
- UC Optical performance with High Resolution 4K digital imaging
- Laboratory Screening & Research
- Veterinary Cytology Screening
- Environmental research
- University & Advanced hobby microscopy
- Halogen & LED illumination included
- 4K live image view capture from HD screen or PC
- Image stitching & EDF extra depth focus software included
Summary of Motic Panthera C2 Features:-
- Reversed coded quintuple nosepiece
- Intelligent light management
- Ultra contrast optics (UC)
- Smooth rackless stage with dual slide holder
- Full Koehler illumination
- 3W LED & interchangeable 30 Watt Halogen
Motic Panthera C2 Digital 4K package specification:
- Trinocular head Siedentopf type, 25° inclined, 360° swiveling / Trinocular Option
- Widefield high eyepoint eyepiece UC-WF10X/22mm with diopter adjustment on both eyepieces and rubber eyecups
- Reversed coded quintuple nosepiece with Motic Light Tracer (Intelligent Light Management)
- LED strip light indicator
- CCIS® Plan UC (Ultra Contrast) objectives 4X, 10X, 40X S, 60x & Optional 100X S-Oil (Oil)
- Coaxial coarse and fine focusing adjustment with tension adjustment
- Built in low position coaxial rackless stage with right hand control
- Dual Slide holder with one handed operation
- Focusable Abbe condenser N.A. 0.90 with iris diaphragm and slot
- Koehler 30 watt Halogen & LED illumination 3W with intensity control (C2)
- Integrated USB port for camera power supply
- Power supply 100-240V (CE) with Sleep Mode
- UK or EU Power cord, immersion oil (5ml), allen hexagonal key, vinyl dust cover

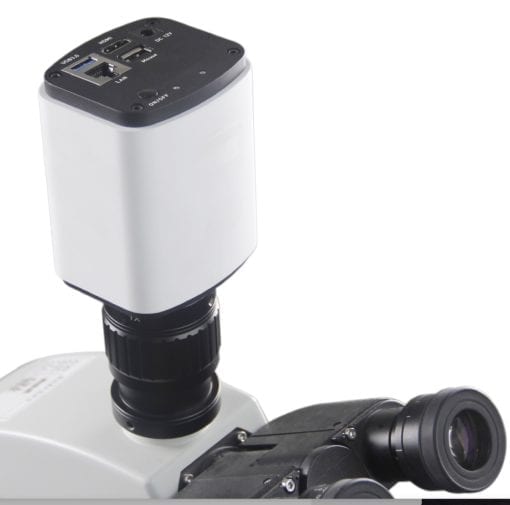

- 4K Microscope Camera
- Tucsen Live 4K HDMI output to 4K / HD Screen
- View & Capture to Memory Stick from monitor
- USB3.00 to PC / Mac connection via included software
- Sony IMX183C CMOS 4K Sensor
- Software for PC Image Capture
- Software Feature measure tools
- Software large image manual scan & capture
- Software EDF Manual all in focus imaging
- 1″ C Mount Adapter to Panthera C2
NOTE: This Panthera C2 + 4K digital microscope is supplied as a package excluding a suitable HDMI / 4K Monitor
To add a monitor to the package contact MMS Here – We will provide a formal quotation with the monitor of your choice.
