Scanning Stages For Microscopes

Description

Motorise sample movement on your microscope with a scanning stage.

Adapt to your existing microscope or include with a custome designed work station.

Please contact MMS Microscopes with details of your application here

100 x 100mm Scanning stage specification:-
  • Scanning Microscope Stage 100 x 100mm
  • Travel range: 100 x 100mm (4″ x 4″)
  • Repeatability: , 1um
  • Accuracy: 1um
  • Resolution: 0.05um (Smallest step size)
  • Orthogonality: ,10 arc sec
  • Motor: 2 phase stepper motor
  • Max. travel speed: 240mm / sec with 4mm ball screw pitch
  • Limit switches: optical light beam
  • Material: Aluminium
  • Surface: Anodic coating, black lacquered
  • Weight: 4.60 Kg
  • 100 x 100 mm (4″ x 4″)

    Product Features

  • with integrated measuring system
  • for upright microscopes / transmitted and reflected light applications
  • exchangeable stage inserts for different kinds of applications
  • flat design due to lowered motor axis
  • The integrated electronic stage identification device ETS enables automatic identification of the scanning stage as well as the parametrization of the controller.

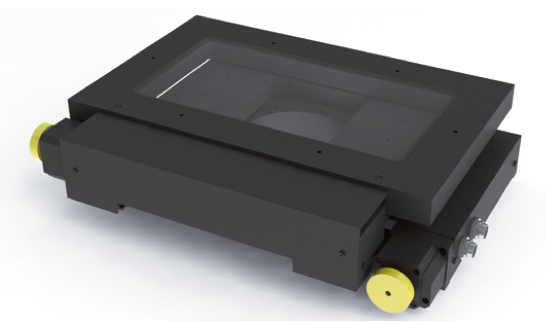

Motorised Microscope Measure Stage 200 x 100mm
