Description
Motic SMZ-160 Stereo Zoom Microscope Series
SMZ-160 Series stereo zoom microscope series for education, laboratory & QC inspection.
Motic SMZ 160 optical zoom system produces clear and distortion free images. Featuring a zoom ratio of 6:1, producing a magnification range of 7.5x – 45x with the 10x WF Eyepieces within the standard outfit. Magnification is extendable with the addition of optional 0.35x 0.5x 0.75x 1.5x & 2.0x objectives also 15x or 20x eyepieces.
The zoom click stops ensure precise reproduction of magnification for feature measurement or inspection tasks.
SMZ 160 series BP / TP models are available as a binocular or trinocular system with incident (no light included) stand and focus arm.
MMS Microscopes offer a range of LED illumination options for zoom microscopy applications here

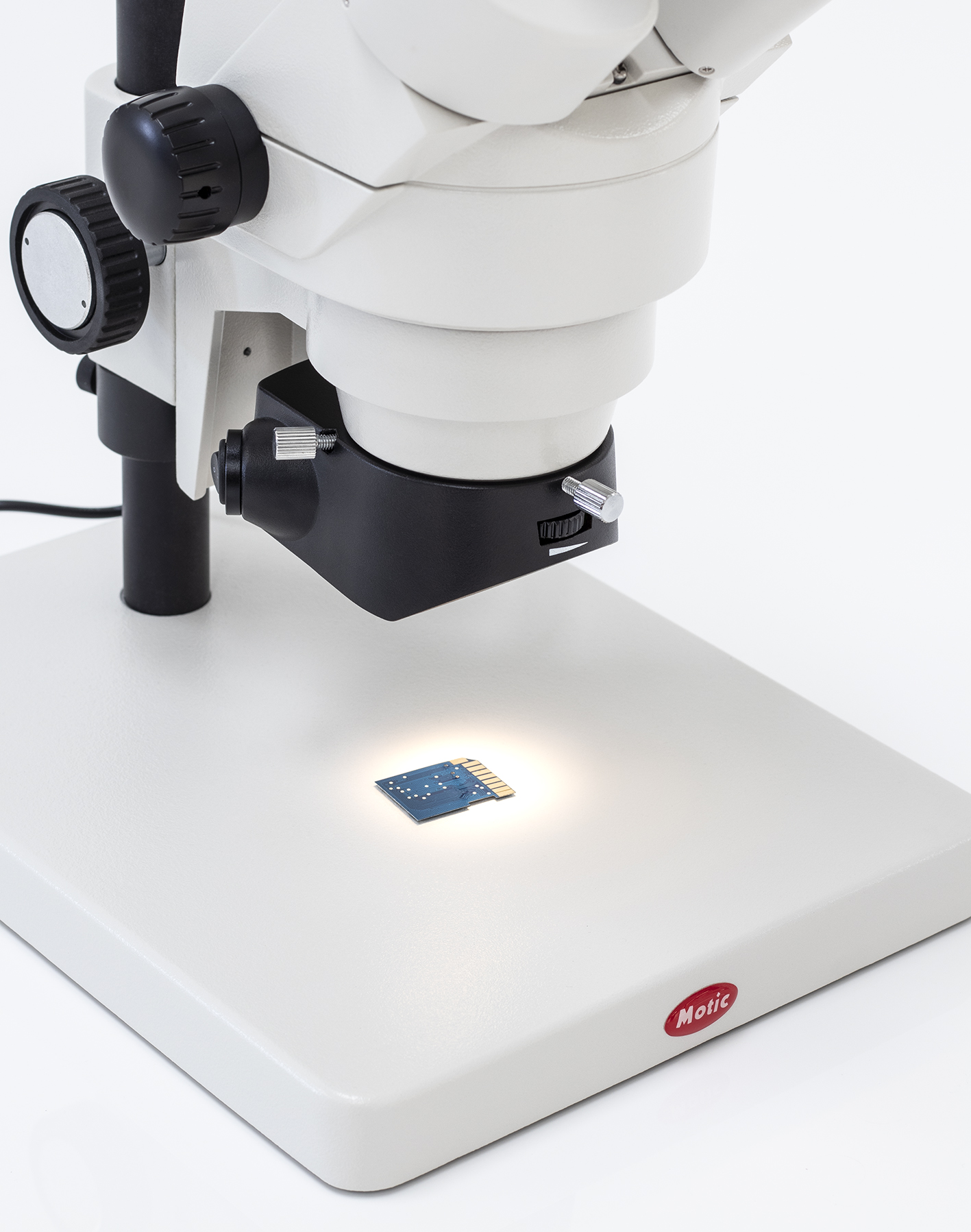

SMZ 160 BLED / TLED models include integrated incident & transmitted 3W LED illumination with variable intensity control.
Looking to purchase a number of zoom microscopes? Request an itemised quotation with quantity breaks + free UK delivery

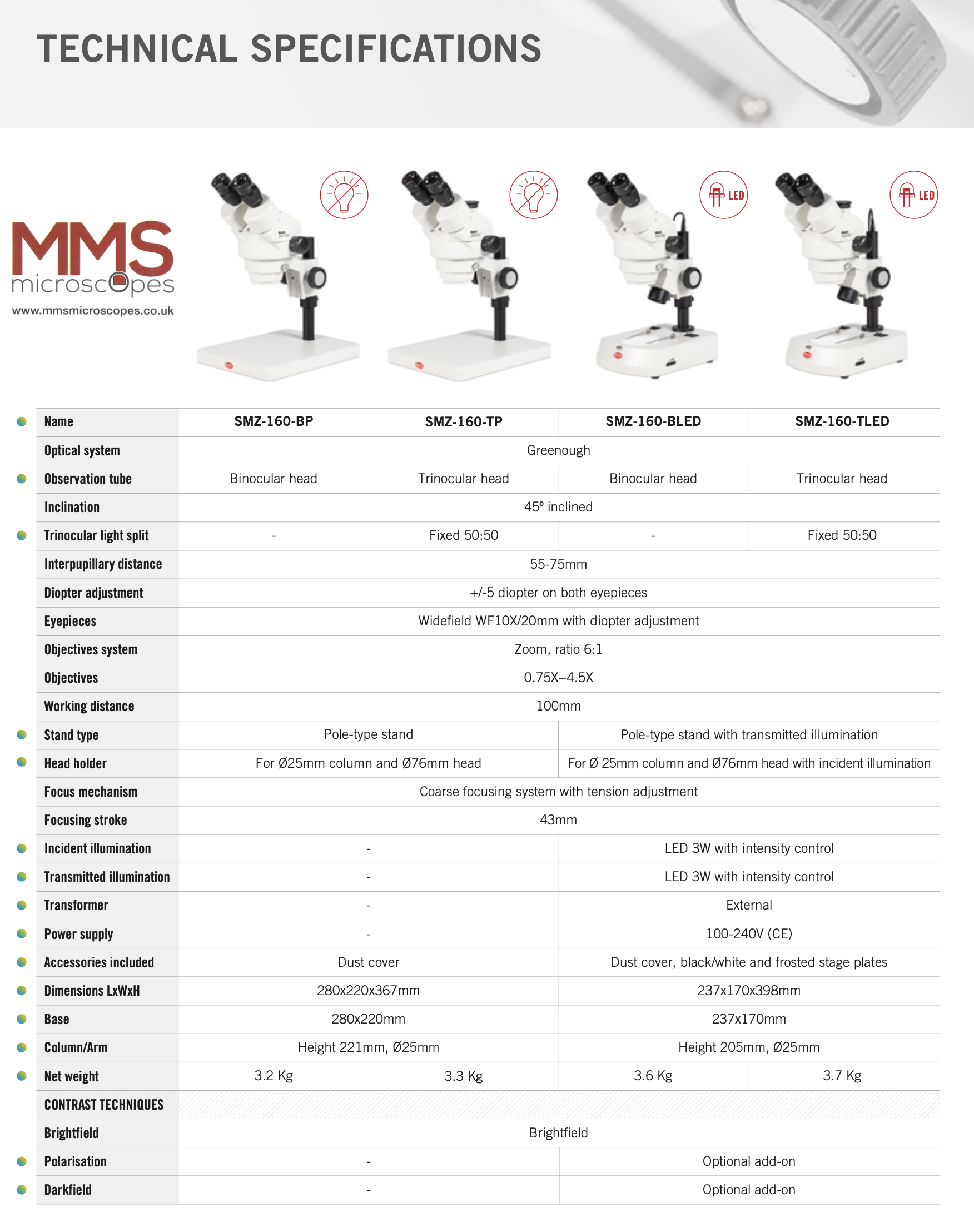

SMZ 160 Series Configurations available from MMS Microscopes :-
SMZ-160-BP
- Binocular greenough optical zoom system without illumination
- Base stand with focusing arm & SMZ 160 Zoom Body
- 10x Eyepieces with eye guards

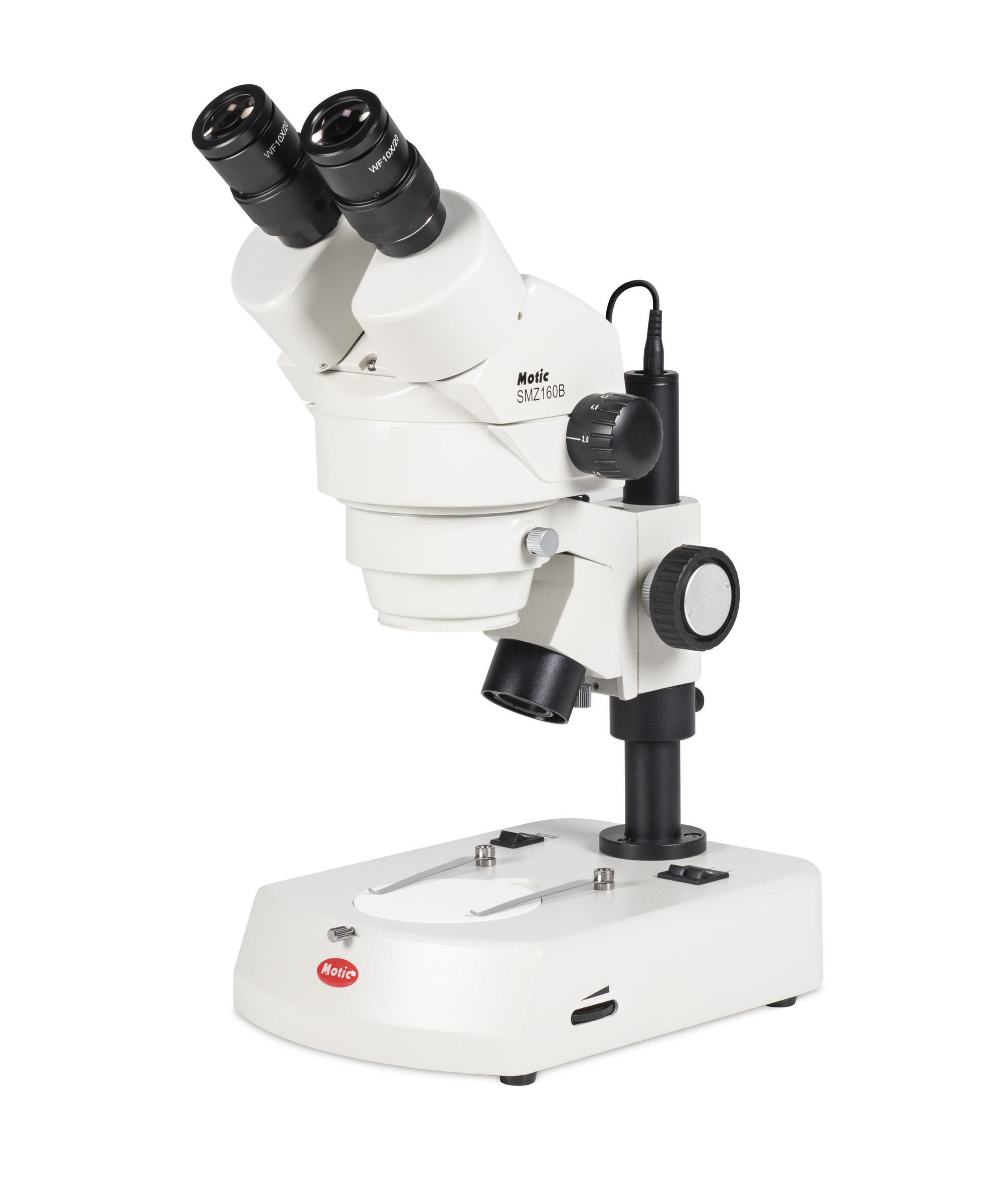

SMZ-160-BLED
- Binocular greenough optical zoom system with illumination
- 10x WF Eyepieces with Eyeguards
- Pole type stand with transmitted LED illumination
- Focus arm with Incident Led illumination
SMZ-160-TP
- Trinocular greenough optical zoom system without illumination
- Base stand with focusing arm & SMZ 160 Zoom Body
- 10x Eyepieces with eye guards
SMZ-160-TLED
- Trinocular greenough optical zoom system with illumination
- 10x WF Eyepieces with Eyeguards
- Pole type stand with transmitted LED illumination
- Focus arm with Incident Led illumination
Objectives for SMZ 160 Series
- Objective 0.3x (WD=287mm) (For long reach stands only)
- Objective 0.5x (WD=165mm)
- Objective 0.75x (WD=120mm)
- Objective 1.5x (WD=47mm)
- Objective 2.0x (WD=30mm)
