Motic PA53 Bio Research Microscope
- Motic PA 53 Research
- Motic PA53 Bio Cytology Microscope
- Motic PA53 Bio Pathology Microscope
- Motic PA53 BIO FS6 Episode Fluo
- Contact MMS Microscopes for further information
Description

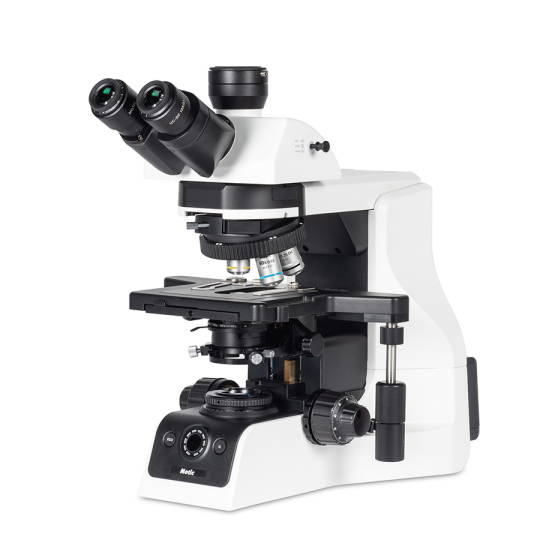

Motic PA 53 BIO System Code: 1200104600941 Comprises
- Colour Corrected Infinity Optical System (CCIS®)
- Intermediate body with head and nosepiece holders, slot for optional
- analyser filter, connecting cable for intelligent light function
- Trinocular inverted image tube head (FN23), inclination angle 30º, IPD
- 55-75mm, (light split 100/0, 20/80, 0/100)
- Widefield eyepiece WF 10X/23mm with diopter adjustment +/-4

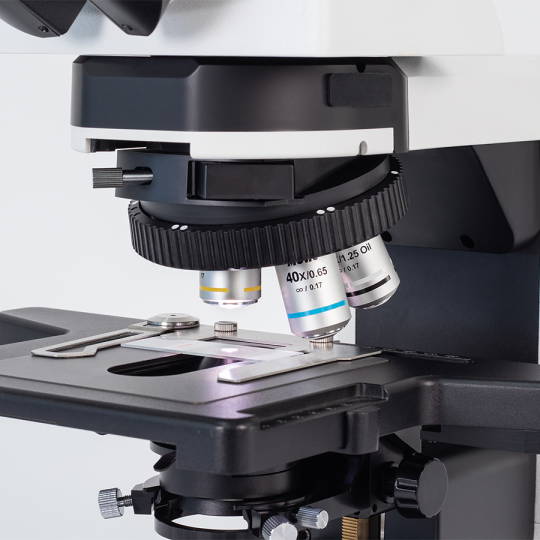

- Reversed coded sextuple nosepiece
- CCIS® Plan achromatic objective UC PL 4X/0.1 WD=30.5mm CG=0.17
- CCIS® Plan achromatic objective UC PL 10X/0.25 WD=17.4mm CG=0.17
- CCIS® Plan achromatic objective UC PL 40X/0.65 WD=0.6mm CG=0.17
- CCIS® Plan achromatic objective UC PL 100X/1.25 Oil WD=0.16mm CG=0.17
- Stage with anti-abrasive surface, FL shutter, low coaxial position control, position and tension adjustable
- Focusable and centerable Abbe condenser N.A. 0.90/1.25 with PH/DFslider slot

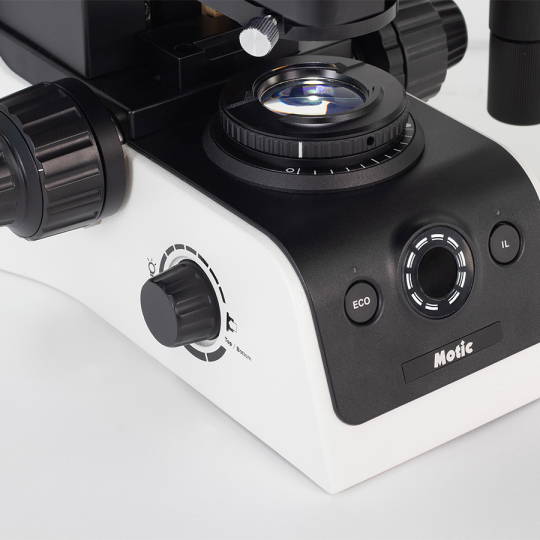

- Köhler transmitted illumination LED 10W with external lamp houseand intensity control
- Dust cover, power cord, Allen key, immersion oil (5ml)
PA53 BIO Cytology System Code: 1200104600943
- Colour Corrected Infinity Optical System (CCIS®)
- Intermediate body with head and nosepiece holders, slot for optional
- analyser filter, connecting cable for intelligent light function

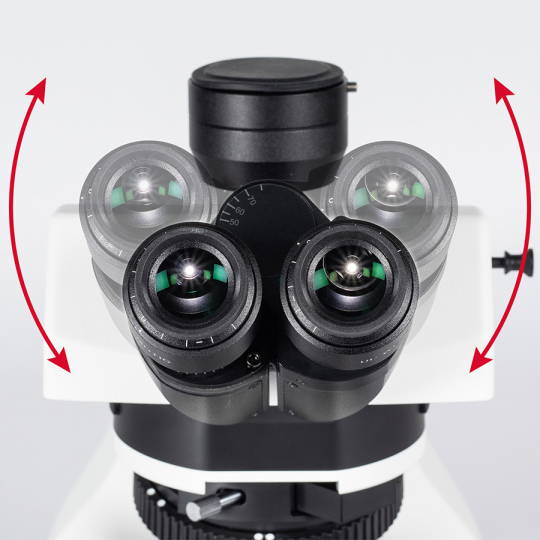

- Tilting trinocular inverted image tube head (FN23), inclination angle 15-45º, IPD 55-75mm, (light split 100:0, 50:50, 0:100)
- Widefield eyepiece WF 10X/23mm with diopter adjustment +/-4
- Reversed coded sextuple nosepiece
- CCIS® Plan achromatic objective UC PL 4X/0.1 WD=30.5mm CG=0.17
- CCIS® Plan achromatic objective UC PL 10X/0.25 WD=17.4mm CG=0.17
- CCIS® Plan achromatic objective UC PL 40X/0.65 WD=0.6mm CG=0.17
- CCIS® Plan FLUOR objective UC PL FL 50X/1.20/S-Oil WD=0.1mm CG=0.17
- Stage with anti-abrasive surface, FL shutter, low coaxial position control, position and tension adjustable
- Focusable and centerable Abbe condenser N.A. 0.90/1.25 with PH/DF slider slot
- Köhler transmitted illumination LED 10W with external lamp house and intensity control
- Dust cover, power cord, Allen key, immersion oil (5ml)
PA53 BIO Pathology System Code: 1200104600944
- Colour Corrected Infinity Optical System (CCIS®)
- Intermediate body with head and nosepiece holders, slot for optional analyser filter, connecting cable for intelligent light function
- Tilting trinocular inverted image tube head (FN23), inclination angle 15-45º, IPD 55-75mm, (light split 100:0, 50:50, 0:100)
- Widefield eyepiece WF 10X/23mm with diopter adjustment +/-4
- Reversed coded sextuple nosepiece
- CCIS® Plan achromatic objective UC PL 2X/0.05 WD=7.2mm CG=0.17
- CCIS® Plan achromatic objective UC PL 4X/0.1 WD=30.5mm CG=0.17
- CCIS® Plan achromatic objective UC PL 10X/0.25 WD=17.4mm CG=0.17
- CCIS® Plan achromatic objective UC PL 20X/0.45 WD=0.8mm CG=0.17
- CCIS® Plan achromatic objective UC PL 40X/0.65 WD=0.6mm CG=0.17
- Stage with anti-abrasive surface, FL shutter, low coaxial position control, position and tension adjustable
- Focusable and centerable achromatic swing-out condenser N.A. 0.90/0.13 with iris diaphragm
- Köhler transmitted illumination LED 10W with external lamp house and intensity control
- Dust cover, power cord, Allen key

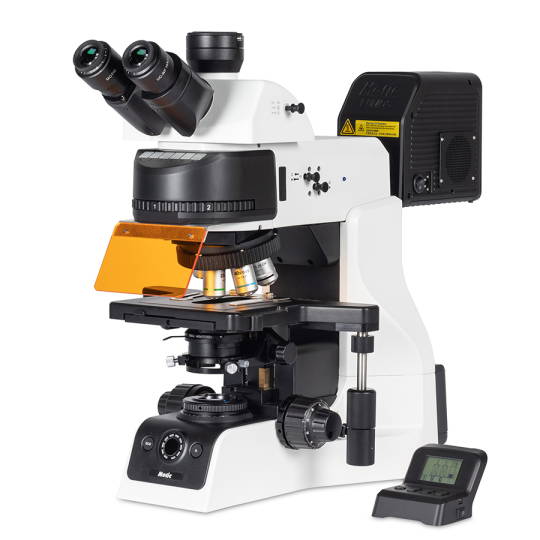

PA53 BIO FS6 EPIFLUO System Code: 120010460095
- Colour Corrected Infinity Optical System (CCIS®)

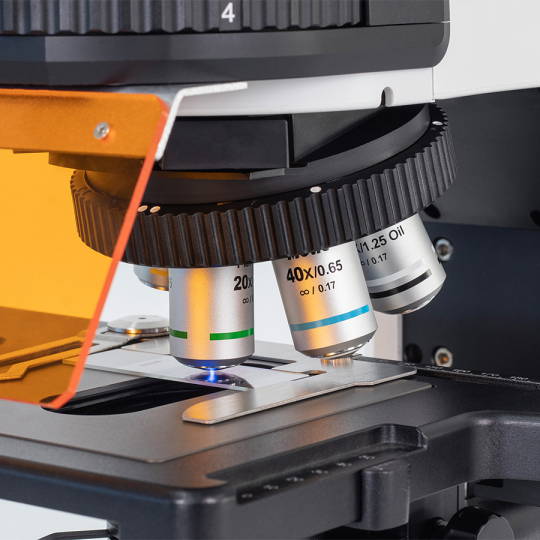

- 6-position coded epifluorescence turret (5 for filter sets and 1 BF) with head and nosepiece holders, iris and field diaphragms

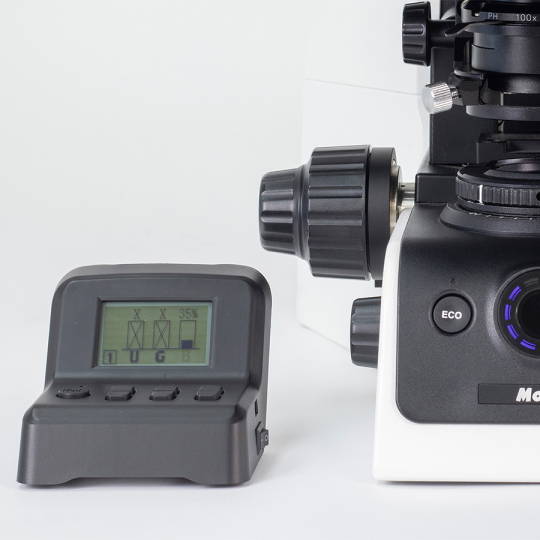

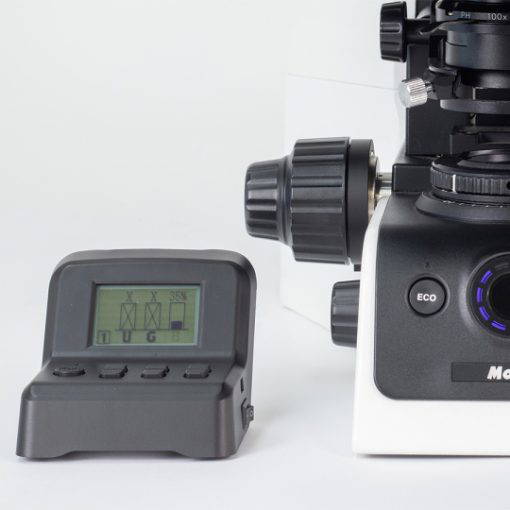

- LUMOS reflected High-power LED fluorescence illuminator
- Trinocular inverted image tube head (FN23), inclination angle 30º, IPD 55-75mm, (light split 100/0, 20/80, 0/100)
- Widefield eyepiece WF 10X/23mm with diopter adjustment +/-4
- Reversed coded sextuple nosepiece
- CCIS® Plan achromatic objective UC PL 4X/0.1 WD=30.5mm CG=0.17
- CCIS® Plan achromatic objective UC PL 10X/0.25 WD=17.4mm CG=0.17
- CCIS® Plan achromatic objective UC PL 20X/0.45 WD=0.8mm CG=0.17
- CCIS® Plan achromatic objective UC PL 40X/0.65 WD=0.6mm CG=0.17
- CCIS® Plan achromatic objective UC PL 100X/1.25 Oil WD=0.16mm CG=0.17
- Stage with anti-abrasive surface, FL shutter, low coaxial position control, position and tension adjustable
- Focusable and centerable Abbe condenser N.A. 0.90/1.25 with PH/DF slider slot
- Köhler transmitted illumination LED 10W with external lamp house and intensity control
- Dust cover, power cord, Allen key, immersion oil (5ml)
- *Fluorescence filter sets not included
