Motic Microscopes BA310LED BA310E Elite Series Lab & Fluorescence Microscope
Motic BA310 Series light microscope equally at home in a busy lab or biosciences education microscopy department. Featuring bright-field LED or halogen Koehler illumination. Modular LED Epi Fluorescence attachments, Polarised light & phase contrast are all available options to expand this capable microscope.

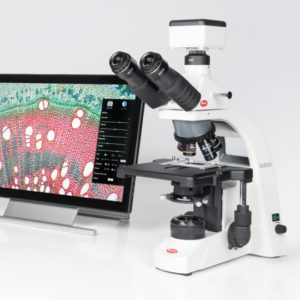

Motic BA 310E with HD Camera Displaying Live HD Images also Video event recording – MMS Microscopes
Standard Motic BA 310 configuration comprise:-
- Binocular head Siedentopf type, 30° inclined, 360° swiveling, 360° rotating
- OR

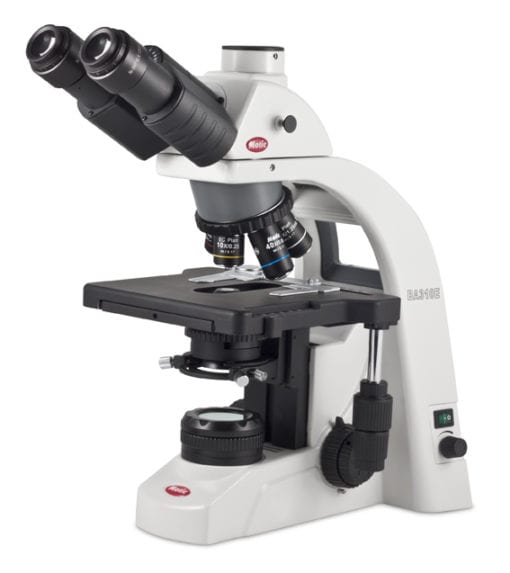

- Trinocular head Siedentopf type, 30° inclined, 360° swiveling, 360° rotating (Light split 100:0/20:80)
- Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
- Reversed quintuple revolving nosepiece
- CCIS Plan achromatic objectives EC PL 4X, 10X, 40X S, 100X S-Oil
- Coaxial coarse and fine focusing system with tension adjustment
- Built in low position coaxial rackless mechanical stage (Right-hand control)
- Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slotFluorescence
- Koehler LED illumination 3W with intensity control (BA310 LED)
- Koehler illumination quartz halogen 6V/30W with intensity control ()BA310E
- Optional LED Module for Transmitted light – 4500K or 6000K)
- Power supply 100V-240V (CE)
- 45mm blue filter, immersion oil (5ml), power cord, Allen hexagonal key, thumb screw, vinyl dust cover
-
-
Motic BA310E Component options include:-
- CCIS Plan achromatic Objective EC PL 20x/0.45 (WD=0.9mm)
- CCIS Plan achromatic objective 60x/0.80/s (WD=0.35mm)
- Eyepiece Reticles (Various)
- Darkfield slider (4x-40x)
- Phase Contrast
- Polarise / Analyzer
- 0.35x C Mount Adapter for 1/3″ sensor
- 0.5x C Mount adapter for 1/3″ & 1/2″ sensor
- 0.65x C Mount adapter for 2/3″ sensor
- 1x C Mount adapter ( No Lens)
- DSLR Photo Adapter
- Photo Eyepiece
- Various Filters (45mm)
Epi LED Fluorescence Modules
- AO filter cube Standard Auramine
- O filter cube, 455nm LED module Light blocking slider
- Plastic triangle with the magnet (for BA310LED) Rubber eyecup (paired)
- Power supply with multi-plug (UL,VDE,UK),allen hexagonal key, vinyl dust cover
- Recommend to use CCIS Plan Achromatic NCG objectives EC PL
- Epi-LED Fluorescence attachment-
-
-
- FITC filter cube
- Standard FITC filter cube, 470nm LED moduleLight blocking slider
- Plastic triangle with the magnet (for BA310LED) Rubber eyecup (paired)
- Power supply with multi-plug (UL,VDE,UK), allen hexagonal key, vinyl dust cover
- Recommend to use CCIS Plan achromatic objectives EC PL
- MB filter cube Standard MB filter cube, 470nm LED module
- Light blocking slider
- Plastic triangle with the magnet (for BA310LED) Rubber eyecup (paired)
- Power supply with multi-plug (UL,VDE,UK), allen hexagonal key, vinyl dust cover
- Recommend to use CCIS Plan achromatic objectives EC
-
- Optional Accessory for Epi-LED Fluorescence:-
- Battery power supply for Epi-LED FL attachment
- 9000mAHx6 batteries
BA310E Multi Viewing Binocular Head Options
- MHV-2 LS – Dual observation optical bridge (side by side) on left side
- LED pointer on primary unit
- Adjustable height support apparatus for secondary unit (1 piece)
- One additional head and one pair of eyepieces required and to be ordered separately
- MHV-2 RS – Dual observation optical bridge (side by side) on right side
- LED pointer on primary unit
- Adjustable height support apparatus for secondary unit (1 piece)
- One additional head and one pair of eyepieces required and to be ordered separately

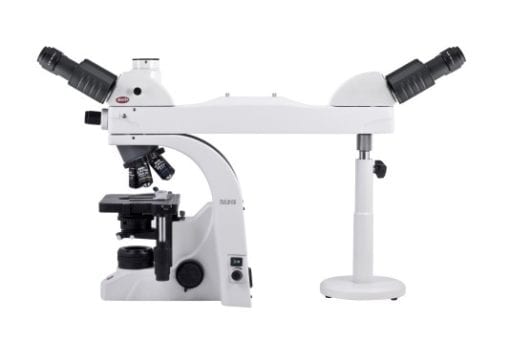

- MHV-2 FF – Dual observation optical bridge (face to face)
- LED pointer on primary unit
- Adjustable height support apparatus for secondary unit (1 piece)
- One additional head and one pair of eyepieces required and to be ordered separately
- MHV-3 LS – Three head observation optical bridge on left side
- LED pointer on primary unit
- Adjustable height support apparatus for secondary unit (1 piece)
- Two additional heads and two pairs of eyepieces required and to be ordered separately
- MHV-3 RS – Three head observation optical bridge on right side
- LED pointer on primary unit
- Adjustable height support apparatus for secondary unit (1 piece)
- Two additional heads and two pairs of eyepieces
- MHV – Multi-Head Viewing System required and to be ordered separately
- MHV-5 – Five head observation optical bridge
- LED pointer on primary unit
- Adjustable height support apparatus for secondary unit (2 piece)
- Four additional heads and four pairs of eyepieces required and to be ordered separately
-
PHASE MICROSCOPY Component Options :-
Positive Phase Objective
- CCIS® Plan achromatic Phase objective EC-H PL Ph 10X/0.25 (WD=17.4mm) +
- CCIS® Plan achromatic Phase objective EC-H PL Ph 20X/0.45 (WD=0.9mm) +
- CCIS® Plan achromatic Phase objective EC-H PL Ph 40X/0.65/S (WD=0.5mm) +
- CCIS® Plan achromatic Phase objective EC-H PL Ph 100X/1.25/S-Oil (WD=0.15mm) +
Negative Phase Objectives
- CCIS® Plan achromatic Phase objective EC-H PL Ph 10X/0.25 (WD=17.4mm) –
- CCIS® Plan achromatic Phase objective EC-H PL Ph 20X/0.45 (WD=0.9mm) –
- CCIS® Plan achromatic Phase objective EC-H PL Ph 40X/0.65/S (WD=0.5mm) –
- CCIS® Plan achromatic Phase objective EC-H PL Ph 100X/1.25/S-Oil (WD=0.15mm)
Phase Condenser & Slider Options
- Phase contrast 5 position (BF, DF, Ph1, Ph2, Ph3) turret condenser
- 3-Position Phase slider for Ph1, Ph2, BF Phase slider Ph1 (10X)
- Phase slider Ph2 (20X, 40X)
- Phase slider Ph3 (100X)
- Darkfield slider (4X~40X) Phase centering telescope
