Motic Microscopes AE31E Trino inverted Lab Microscope

Description

Motic Microscopes AE31E Elite Series Trinocular Inverted Microscope

  • Comprises:-
  • Trinocular head Siedentopf type, 45 inclined (Light split 100:0/20:80)
  • Widefield high eyepoint eyepieces WFPL10X/22mm with diopter adjustment on both eyepieces and rubber eyecups
  • Side facing quintuple nosepiece
  • CCIS Plan Achromatic objective PL4X
  • CCIS Plan Achromatic Phase objectives
  • PL Ph10X, LWD PL Ph20X, LWD PL Ph40X
  • Coaxial coarse and fine focusing adjustment
  • Hard coated stage with metal and glass stage inserts
  • ELWD condenser N.A. 0.30
  • Phase slider Ph1, brightfield, Ph3
  • Phase centering telescope
  • Koehler illumination quartz halogen 6V/30W with external lamp house and intensity control Power supply 100V-240V (CE)
  • 45mm blue, green interference and ground glass filters
  • (EU or UK) Power cord, hexagonal key, vinyl dust cover



  • Motic AE31 Elite Series Standard Configurations Include :-
  • Model Code 1100100200565 – AE31E Binocular with 6v/30w quartz halogen lamp house
  • Model Code 1100100200576 – AE31E Trinocular with 6v / 30w quartz halogen lamp house
  • Model Code 1100100200584 – AE31E Binocular with 12v/100w quartz halogen lamp house
  • Model Code 1100100200594 – AE31E Trinocular with12v/100w quartz halogen lamp house
  • LED Module 4500K & 60000K also available to replace 30 watt lamphouse
Motic Microscopes AE31 Inverted Accessories Include:-

Motic Microscopes Reticles
  • Reticle with crosshair (Ø25mm)
  • Reticle with 100 divisions in 10mm (Ø25mm)
  • Reticle with crossed double scale 100 divisions in 10mm (Ø25mm)
CCIS® Plan achromatic objectives – PL
  • CCIS® Plan achromatic objective PL 4X/0.10 (WD=12.6mm)
  • CCIS® Plan achromatic objective PL 10X/0.25 (WD=16.8mm)
  • CCIS® Plan achromatic objective LWD PL 20X/0.3 (WD=4.7mm)
  • CCIS® Plan achromatic objective LWD PL 40X/0.5 (WD=3.0mm)
  • CCIS® Plan achromatic Phase objectives – PL Ph
  • CCIS® Plan achromatic Phase objective PL Ph 4X/0.10 (WD=12.6mm) Ph0
  • CCIS® Plan achromatic Phase objective PL Ph 10X/0.25 (WD=4.1mm) Ph1
  • CCIS® Plan achromatic Phase objective LWD PL Ph 20X/0.3 (WD=4.7mm) Ph1
  • CCIS® Plan achromatic Phase objective LWD PL Ph 40X/0.5 (WD=3.0mm) Ph1
Motic Microscopes AE31 Inverted Stage accessories
  • Glass stage insert
  • Metal stage insert
  • Auxilliary stages (2 pieces)

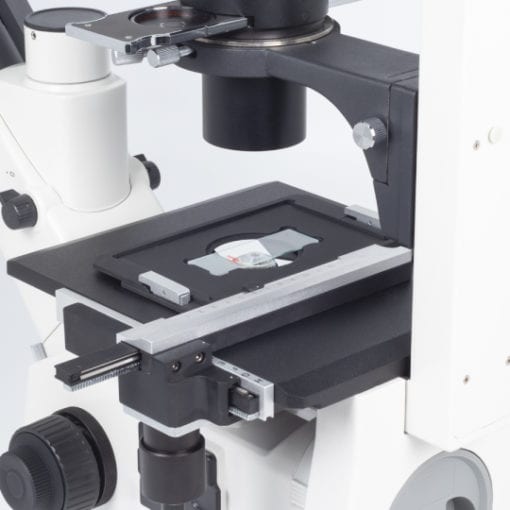

  • Attachable mechanical stage with well plate holder (128 x 86mm)
  • Well plate holder (132x88mm)
  • Ø 35mm Petri dish holder (only applicable with 1101000200262)
  • Ø 54mm Petri dish holder with slide holder 26x76mm
  • Ø 65mm Petri dish holder with slide holder 35x76mm Hemacytometer holder (35 x 76mm)
