Inverted Microscope Motic Microscopes AE2000 Live Cell Microscopy

Motic Microscopes Inverted AE2000 Binocular Microscope

Contact MMS Microscopes For Best Motic Microscopes Support & Price Package

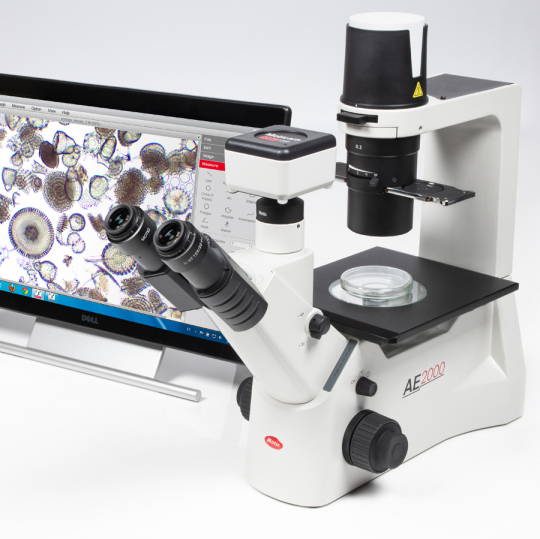

Motic AE2000 Series – Routine and Live Cell Microscope Solution

Motic Microscopes AE2000 Inverted Microscope the perfect instrument for routine live cell imaging. Designed for both university education biosciences & general laboratory applications. The uniquely integrated Auto cut-off mode (“sleep mode”) adds to the efficiency of this budget friendly microscope.

Suitable for routine-lab or clinical work, also research requirements within Pharmaceutical Laboratories.  AE2000 is more than capable of fulfilling the expectations of all users. Superb optical quality can be expected from a brand new optical series of both bright field and phase contrast lenses. Benefitting from Motic’s successful CCIS® Infinity Optical System. Halogen & LED Illumination options are available. Please request further information & support from Motic UK importer MMS Microscopes.

Motic Microscopes Inverted AE2000 Comprises:-

  •  Binocular head Siedentopf type 45° inclined, 360°swivelling
  • Widefield high eyepoint eyepieces N-WF 10X/20mm with diopter adjustment and rubber eyecups
  • Side facing quadruple nosepiece
  • CCIS Plan achromatic objectives PL 4X, LWD PL 40X
  • CCIS Plan achromatic Phase objectives PL Ph 10X, LWD PL Ph 20X
  • Coaxial coarse and fine focusing adjustment
  • Hard coated stage with metal and glass stage inserts
  • ELWD condenser N.A. 0.30
  • Phase slider Ph1, BF
  • Phase centering telescope
  • Halogen illumination 6V/30W with intensity control and sleeping mode
  • Power supply 100V-240V (CE)
  • Contact MMS Microscopes / Request a Quotation Here

  • AE 2000 Accessories Options:-

  • ELWD condenser n.A. 0.30 (WD=72mm)
  • LWD Condenser N.A.0.40 (WD=53mm)
  • Condenser N.A. 0.50 (WD=28mm)
  • Empty 3-position phase slider, centerable
  • Phase ring Ph0 (4x)
  • Phase ring Ph1
  • Phase centering telescope
  • Glass stage insert
  • Metal stage insert
  • Auxilliary stages (2 pieces)
  • Attachable mechanical stage with well plate holder (128 x 86mm)
  • Optional LED module 6V/3W 4500°K +/-300°K
  • Optional LED module 6V/3W 6000°K +/-300°K
  • Ø 35mm Petri dish holder (only applicable with 1101000200262)
  • Ø 54mm Petri dish holder
  • Ø 65mm Petri dish holder
  • Hemacytometer holder (35 x 76mm)
  • 1X C-mount camera adapter (no lens)
  • 0.5X C-mount camera adapter for 1/3″ and 1/2″ chip sensors
  • 0.65X C-mount camera adapter for 2/3″ chip sensors
  • Photo adapter (requires one of the photo eyepieces below) 2.5X photo eyepiece (to be used with Photo adapter)
  • 4X photo eyepiece (to be used with Photo adapter)
  • Blue filter (Ø 45mm)
  • Green interference filter (Ø 45mm)
  • Neutral density filter with mount (Ø 45mm)
  • Ground glass filter (Ø 45mm)
  • Didymium filter (Ø 45mm)
