Description
Motic Microscopes Panthera Cloud – A Digital Laboratory microscope – No PC Required
- A digital lab microscope with integrated digital performance.
- Intelligent design & advanced digital microscopy functionality
- Recently upgraded 8 megapixel smart cam & expanded 10 GB internal memory.

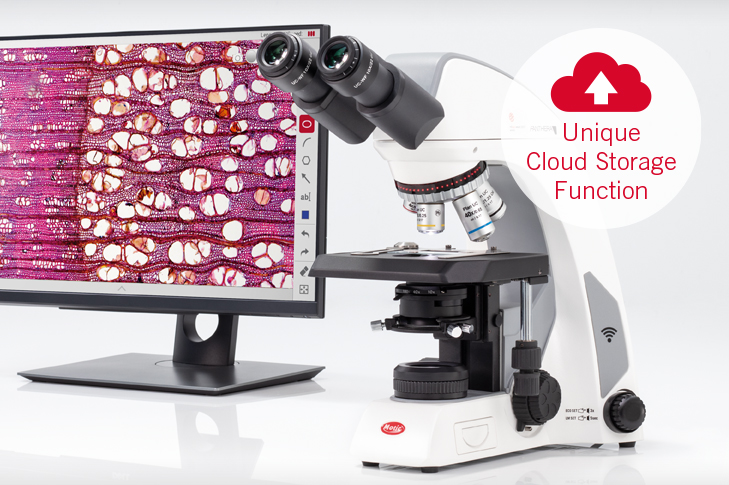

- Store & share your ultra contrast microscopy images with cloud storage.
- Preloaded software included for image measurement & nosepiece calibration store & recall.
- On board memory for calibration data & microscopy image capture / store.
- MMS Microscopes – Motic supply and support experts
Panthera Cloud Digital Laboratory Microscope – The Advantages
- Automatic recall of optimum light intensity settings
- Automatic calibration recall on every stored objective
- Integrated HD 8 Megapixel smart cam
- On board 10 GB storage
- Live HDMI microscope image to Monitor output
- UC Ultra Contrast coatings on all Objectives & optical surfaces
Purchase your microscope solution in confidence from MMS Microscopes. We support not just supply our customers.
- Featuring the latest design & optical performance
- Advanced functionality with a very competitively priced package
- UK installation, calibration and training package available
Contact MMS Microscopes – Motic Microscopes UK support specialists.
Outstanding Features of Panthera Cloud :-
- Digital Laboratory Light Microscope
- Fully Integrated 8 MP smart cam with on board microscope image storage
- Digital microscopy in one compact package
- Coded quintuple nosepiece with Intelligent Light Management.
- View, Feature measure, Edit and Save image data to internal storage
- Impressive UC optical performance
- Integrated outputs via HDMI, Wi-Fi, USB & Ethernet.
- MMS Microscopes UK installation & after sales Motic product support
Choice of Microscopy Illumination Techniques :-
- Brightfield (Standard)
- Darkfield (Option)
- Phase Contrast (Option)
- FLED (Epi) Fluorescence (Option)
Contact Motic UK importer & distributor MMS Microscopes. Discuss your application & budget in confidence.
Motic Panthera E2 C2 DL Cloud have all received IVDR certification for safety, performance & reliability. (In Vitro Diagnostic Medical Devices Regulation)
Recent MMS Microscopes Panthera installations include:-
- Laboratory inspection within an MD manufacturing environment
- Veterinary Referrals Diagnostics Laboratory
- Bio-processing research & development lab
- Algae research & Production
- Hobby microscopist researching microorganisms
- How can we help you?

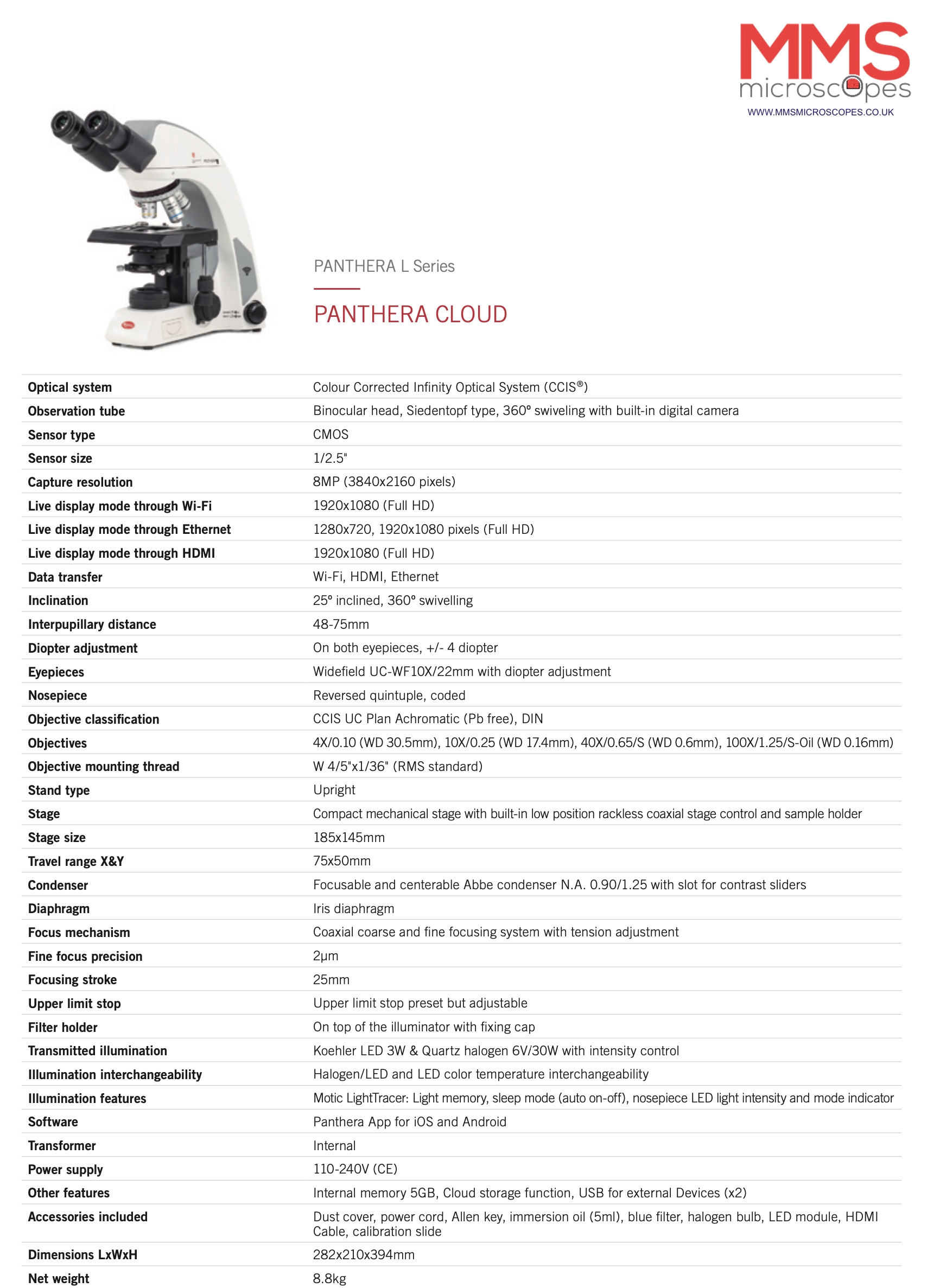

Motic Panthera Cloud Digital Lab Microscope Specification:-
- Binocular head Siedentopf type, 25° inclined, 360° swiveling with built- in Digital Smart CAM
- Widefield high eyepoint eyepiece UC-WF10X/22mm with diopter adjustment on both eyepieces and rubber eyecups

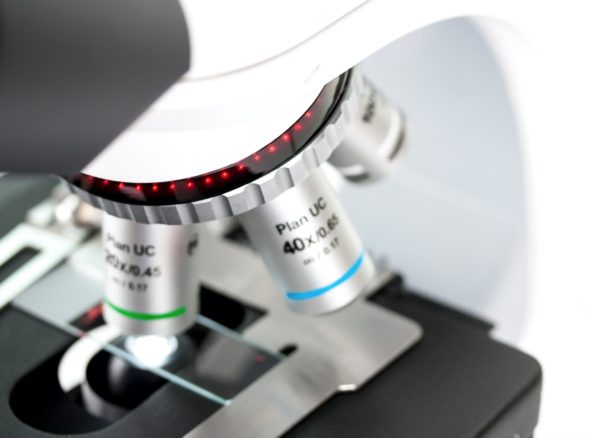

- Reversed coded quintuple nosepiece with Motic Light Tracer (Intelligent Light Management)
- LED strip light indicator
- CCIS® Plan UC objectives 4X, 10X, 40X S, 100X S-Oil

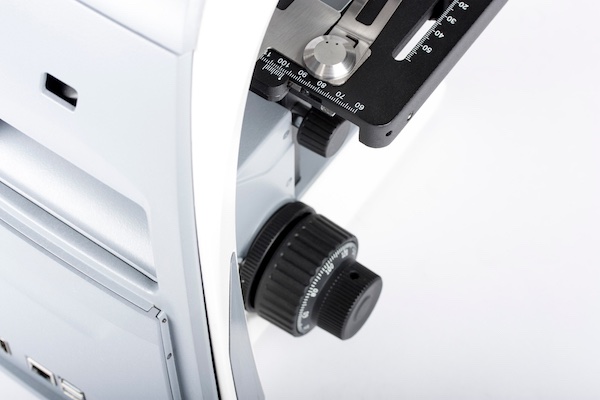

- Coaxial coarse and fine focusing adjustment with tension adjustment
- Built in low position coaxial rackless stage with right hand control
- Focusable Abbe condenser N.A. 0.90 with iris diaphragm and slot
- Koehler illumination with 3W LED and 6V/30W halogen interchangeable illumination

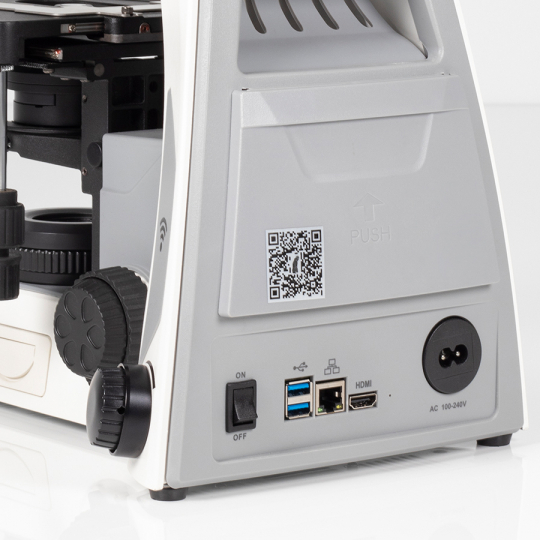

- HDMI output, USB for external devices, RJ-45 and Wi-Fi
- 10 GB internal memory for image storage to custom folders
- Power supply 100-240V (CE) with Sleep Mode
- Power cord, blue filter, immersion oil (5ml), allen hexagonal key, vinyl dust cover,
- Halogen bulb and LED module (offering a choice of colour temperature
- 5 Year Optical & Mechanical Warranty Included
- UK Delivery & Installation / Operator Training Available & provided by MMS Microscopes
- Please contact MMS Microscopes for further information, product support / Request A Quotation
- Auto link to Dropbox Tips
- Panthera Cloud – Features to consider
- MMS_PANTHERA_CLOUD_FL_EN
Motic Panthera Lab Microscope Options Include:-
- Phase Contrast & Darkfield – Phase Turret & Phase Slider Options
- 10x, 20x, 40x & 100x Phase Objectives Available
- Polariser / Analyser set
Additional CCIS Objectives available in addition to those supplied as standard include:-
- CCIS® Plan UC 2X/0.05 (WD=7.2mm)
- CCIS® Plan UC 20X/0.45 (WD=0.8mm)
- CCIS® Plan UC 60X/0.8/S (WD=0.35mm)
- CCIS® Plan UC 100X/0.8/S-Dry (WD=1.7mm)
CCIS® Plan FLUOR objectives – UC PL FL
- CCIS® Plan FLUOR objective UC PL FL 4X/0.13 (WD=17.3mm)
- CCIS® Plan FLUOR objective UC PL FL 10X/0.30 (WD=11.7mm)
- CCIS® Plan FLUOR objective UC PL FL 20X/0.50 (WD=2.2mm)
- CCIS® Plan FLUOR objective UC PL FL 40X/0.75/S (WD=0.7mm)
- CCIS® Plan FLUOR objective UC PL FL 50X/1.0/S-Oil (WD=0.17mm)
- CCIS® Plan FLUOR objective UC PL FL 100X/1.30/S-Oil (WD=0.1mm)
FLED Fluorescence attachment options
- FLED Fluorescence intermediate attachment (Auramine O) Fluorescence intermediate part
LED excitation module AO, consist of 455nm LED lamp and AO filter cube
Light blocking slider
Note: Recomend to use with Plan objectives UC PL NCG - FLED Fluorescence intermediate attachment (FITC)
Fluorescence intermediate part
LED excitation module FITC, consist of 470nm LED lamp and FITC filter cube
Light blocking slider - FLED Fluorescence intermediate attachment (TRITC)
Fluorescence intermediate part
LED excitation module TRITC, consist of 525nm LED lamp and TRITC filter cube
Light blocking slider
LED Fluorescence filter sets
- LED excitation module AO, consist of 455nm LED lamp and AO filter cube
- LED excitation module FITC, consist of 470nm LED lamp and FITC filter cube
- LED excitation module TRITC, consist of 525nm LED lamp and TRITC filter cube
Eyepiece Graticules for Motic Panthera range:-
- Reticle with crosshair (Ø25mm)
- Reticle with 100 divisions in 10mm (Ø25mm)
- Reticle with crossed double scale 100 divisions in 10mm (Ø25mm)
- Reticle with pointer (Ø25mm)
Miscellaneous items :-
- Cleaning kit
- Lens tissue paper (Pack 500)
- Motic slides 76x25mm (50 units)
- Motic coverslips 22x22mm (100 units
- Immersion oil 5ml
- HD Display Monitor ( Specify preferred monitor size & MMS will quote )
