Description
Motic Microscopes BA 210
Biosciences, Veterinary, Education & Laboratory compound microscope with LED illumination.
A compact footprint lab microscope with excellent optical & mechanical build quality. All covered by Motic Europe extended parts warranty.
Motic BA 210 LED Microscope Standard Configuration:-
- Binocular / Trinocular head Siedentopf type, 30° inclined, 360° rotating
- Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
- Reversed quadruple revolving nosepiece
- CCIS Plan achromatic objectives EC PL 4X, 10X, 40X S
- CCIS Plan Achromatic Objectives 60x & 100X S-Oil Options also available
- Coaxial coarse and fine focusing system with tension adjustment
- Built in low position coaxial rackless mechanical stage (Right hand control)
- Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot
- LED Transmitted Light Illumination
- Power supply 100V-240V (CE)
- 45mm blue filter, immersion oil (5ml),
- UK Power cord,
- Allen hexagonal key, thumb screw, vinyl dust cover
- New 12v socket integrated for Epi Fluorescence module from Jan 2020.
- BA210 LED Binocular Head Version (4z,10x,40x) Part Number:1100100403753

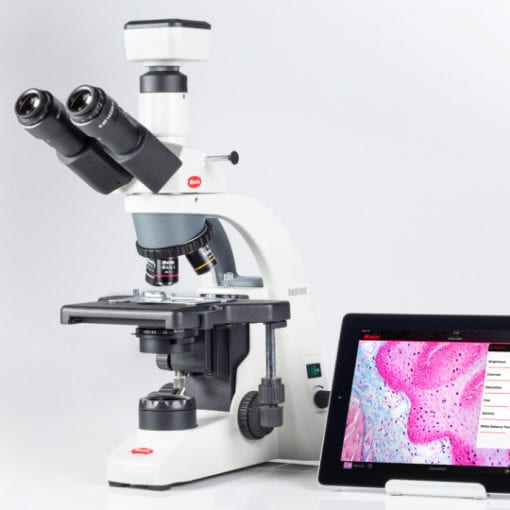

- BA210 LED Trinocular Head version (4x,10x,40x) Part Number:1100100403743
- Motic BA210 LED Trinocular with (4x,10x,40x & 100x (oil) Part Number 1100100403742
- Motic BA210E (Elite) with Halogen light source also available Part Number: 1100100403763
- Moticam 1080 INT Digital HD camera with 11.6″ screen
- Contact MMS Microscopes for advice regarding camera options available

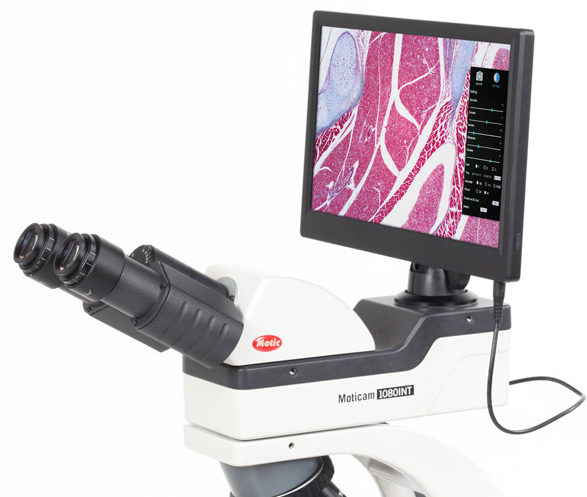

Moticam 1080 INT Integrated digital microscope camera with 11.6″ screen

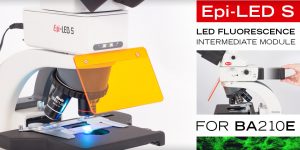

Epi Fluorescence LED Module Option
Epi Fluorescence Led Module
Epi-LED S Fluorescence attachment Auramine O
- Fluorescence intermediate part
- LED excitation module, 455nm LED lamp and filter cube
- Light blocking slider
- Rubber eyecup (paired)
- Power supply with multi-plug (UL,VDE,UK),allen hexagonal key, vinyl dust cover
Epi-LED S Fluorescence attachment – MB
- Fluorescence intermediate part
- LED excitation module MB, 470nm LED lamp and filter cube
- Light blocking slider
- Rubber eyecup (paired)
- Power supply with multi-plug (UL,VDE,UK),allen hexagonal key, vinyl dust cover
Epi LED S Fluorescence attachment – G
- Fluorescence intermediate part
- LED Excitation module G, 530nm LED Lamp and filter cube
- Light Blocking Slider
- Rubber eyecup (Pair)
- Power supply with multi plug (UL,VDE,UK), allen hexagonal key, vinyl dust cover
LED Fluorescent Filter Sets
- LED excitation module, 455nm LED lamp and filter cube
- LED excitation module, 470nm LED lamp and filter cube
- LED excitation module, 530nm LED lamp and filter cube
Standard Motic BA 210 Accessories Available from MMS Microscopes include:-
- Reticle with crosshair (Ø25mm)
- Reticle with 100 divisions in 10mm (Ø25mm)
- Reticle with crossed double scale 100 divisions in 10mm (Ø25mm) Reticle with pointer (Ø25mm)
- CCIS Plan Achromat Objectives (Lead Free)
- CCIS Plan achromatic objective EC PL 4X/0.1 (WD=15.9mm)
- CCIS Plan achromatic objective EC PL 10X/0.25 (WD=17.4mm)
- CCIS Plan achromatic objective EC PL 20X/0.45 (WD=0.9mm)
- CCIS Plan achromatic objective EC PL 40X/0.65/S (WD=0.5mm)
- CCIS Plan achromatic objective EC PL 60X/0.80/S (WD=0.35mm)
- CCIS Plan achromatic objective EC PL 100X/1.25/S-Oil (WD=0.15mm)
Phase Objectives (Lead free) & Phase Sliders
- CCIS Plan achromatic Phase objective EC-H PL Ph 10X/0.25 (WD=17.4mm) +
- CCIS Plan achromatic Phase objective EC-H PL Ph 20X/0.45 (WD=0.9mm) +
- CCIS Plan achromatic Phase objective EC-H PL Ph 40X/0.65/S (WD=0.5mm) +
- CCIS Plan achromatic Phase objective EC-H PL Ph 100X/1.25/S-Oil (WD=0.15mm) +
- CCIS Plan Achro Phase Objectives (Lead free) EC-H PL Ph (Negative Phase contrast)
- CCIS Plan achromatic Phase objective EC-H PL Ph 10X/0.25 (WD=17.4mm) –
- CCIS Plan achromatic Phase objective EC-H PL Ph 20X/0.45 (WD=0.9mm) –
- CCIS Plan achromatic Phase objective EC-H PL Ph 40X/0.65/S (WD=0.5mm) –
- CCIS Plan achromatic Phase objective EC-H PL Ph 100X/1.25/S-Oil (WD=0.15mm) –
- 3-Position Phase slider for Ph1, Ph2, BF Phase slider Ph1 (10X)
- Phase slider Ph2 (20X, 40X)
- Phase slider Ph3 (100X)
- Darkfield slider (4X~40X) Phase centering telescope
- Simple add on analyzer Simple add on polarizer
- Camera C Mounts For Motic Microscopes BA Series :-
- 0.5X C-mount camera adapter for 1/3″ and 1/2″ chip sensors
- 0.65X C-mount camera adapter for 2/3″ chip sensors
- Blue filter (Ø 45mm)
- Green filter (Ø 45mm)
- Yellow filter (Ø 45mm)
- Green interference filter (Ø 45mm)
- Neutral density filter ND2 (Ø 45mm)
- Didymium filter (Ø 45mm)
- hort x/y pole for rack-less stage (left hand control) BA210 Mirror set
- Aluminium box for BA210E
