Gemmology Stereo Zoom Microscope Motic Microscopes GM-171 Trino

Motic Microscopes Gemmology Stereo zoom Microscope GM 171-TH with Trinocular Port

  • Greenough zoom optical system
  • Trinocular head, 45° inclined, 360° rotating
  • 100:0 (eyetubes), 0:100 (right eyetube/trinocular tube) optical split
  • Widefield adjustable eyepieces N-WF10X/23mm
  • 6.7:1 Zoom ratio, WD=110mm
  • Objective magnification range: 0.75X-5X
  • Specialised gemmology tilting base, 0° to 45° tilting range: 360° rotary base
  • Coarse focusing system with tension adjustment
  • 6V/30W halogen brightfield/darkfield illumination with intensity control
  • Flexible gooseneck 7W fluorescent incident illumination
  • Main supply 220V-240V (CE)
  • Gem stone holder
  • Aluminium carrying case and dust cover



Description

Gemmology stereo zoom microscope for gemstone inspection & identification.

Motic gemmology stereo zoom microscope direct from importer MMS Microscopes. Assist in the identification of natural or synthetic gemstones. Fully equipped with bright field, incident & dark field transmitted illumination.

Observe under Dark field illumination inclusions within the gem stone. In addition Incident Fluorescent illuminator is mounted on a flexible gooseneck. Crystal clear examination of clarity, colour and finish. Enabling gemologists full angle adjustment / repositioning of incident illumination.

Ergonomically designed zoom microscope, with a comfortable viewing position. Featuring tilting stand optical body is adjustable in a range of 0°- 45° rotatable 360° to share microscope image view.

Motic Microscopes GM-171 Trinocular Gemmology Microscope Comprises:-

  • Greenough zoom optical system
  • Trinocular head, 45° inclined, 360° rotating
  • 100:0 (eyetubes), 0:100 (right eyetube/trinocular tube) optical split
  • Widefield adjustable eyepieces N-WF10X/23mm
  • 6.7:1 Zoom ratio, WD=110mm
  • Objective magnification range: 0.75X-5X
  • Specialised gemmology tilting base, 0° to 45° tilting range: 360° rotary base
  • Coarse focusing system with tension adjustment
  • 6V/30W halogen brightfield/darkfield illumination with intensity control
  • Flexible gooseneck 7W fluorescent incident illumination
  • Main supply 220V-240V (CE)
  • Gem stone holder
  • Aluminium carrying case and dust cover
  • Request a quotation – sales@mmsmicroscopes.co.uk





Motic GM171 Gemmology Microscope from MMS Microscopes

Motic GM171 Gemmology Microscope from MMS Microscopes

Gem stone holder - Motic GM171 Gemmology Microscope from MMS Microscopes

Gem stone holder – Motic GM171 Gemmology Microscope from MMS Microscopes



Pyrope gemstone with chrome dioxide centre

Pyrope gemstone with chrome diopside centre captured on a GM171-TH supplied by MMS to Sammantha Maclachlan FGA

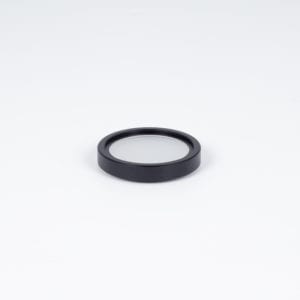

Diffusor Plate for Motic GM 171

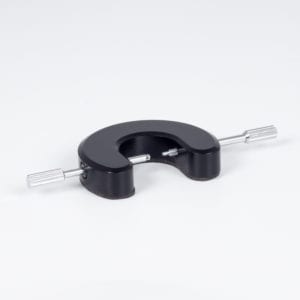

Diamond Holder with coupler operated by screw mechanism

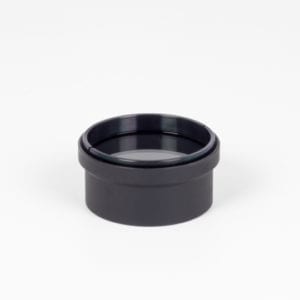

Immersion cell for Motic GM series

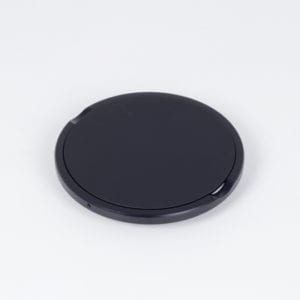

Large Gem Plate

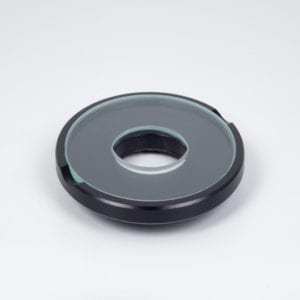

Large Gem Plate 2

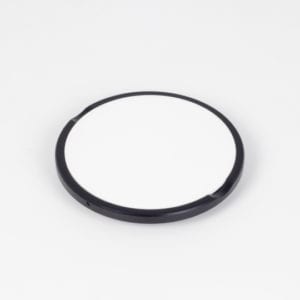

Large Gem Plate White Surface 3

Rounded edge wire gem holder

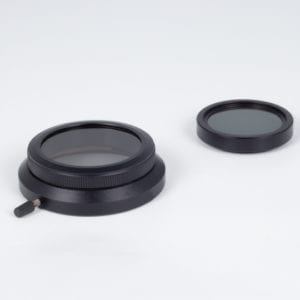

Polarising kit for GM 171

Polarising kit for GM 171
